SKU:
CN NA2C59514154
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Rudder Angle Indicator provides precise monitoring of rudder angles in marine vehicles. It features a 52mm display with a black dial and LED backlighting for easy visibility. The gauge has a range of -40° to +40° and uses a Veratron rudder angle sender with 3-180 Ohm resistance. It operates on 8-32 V DC and includes reverse polarity and short circuit protection. Programming is available with the Veratron USB software kit.
- Description
- Ask a Question
-

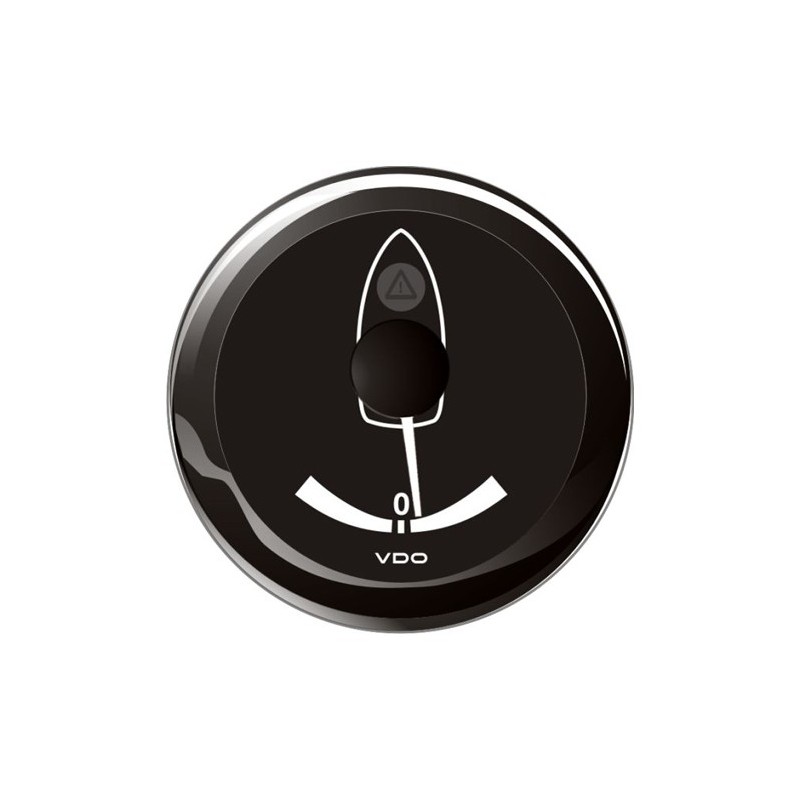

Veratron ViewLine - 52mm Black Rudder Angle Indicator - 12-24V DLRB
The Veratron ViewLine Rudder Angle Indicator is a highly accurate device for monitoring the angle of a rudder in marine vehicles. It features a clean design with LED backlighting, ensuring visibility in any lighting condition.
- Sizes and Mounting: Installation (Hole) diameter and Outside diameter: 52 mm (2 1/16 Inch) and 59 mm (2 1/3 Inch); Installation depth: 50 mm; Locking height with Spinlock nut: 0.5 mm - 20 mm; Locking height with bracket: 2 mm - 15 mm (Optional); Flushmount: Optional kit A2C59510864
- Functionality: Rudder angle range: -40° to +40°; Sensor signal input: Veratron 440-102-001-001D Rudder angle sender 3-180 Ohm; Accuracy: < 4% of full scale reading; Connection: Hirschmann 8 & 14 pins MQS connector
- Power Supply: Operating voltage: 8 to 32 V DC; Current consumption: < 140 mA including warning LED; Reverse polarity protection: Yes - 5 Minutes; Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 80°; Dial colour: Black; Dial illumination: Amber LED backlight 605nm; Pointer: White LED backlight; Warning LED: Red (632nm); Programming: Veratron USB software kit
-
