SKU:
CN NA2C59514136
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Gear Oil Pressure Gauge is designed for automotive and marine applications, offering precise pressure readings from 0-25 Bar or 0-350 PSI. It features a 52mm display with an amber LED backlight and a white LED pointer. The gauge is powered by 8-32 V DC and includes protections against reverse polarity and short circuits. It can be programmed using the Veratron USB software kit, ensuring accurate and reliable performance.
- Description
- Ask a Question
-

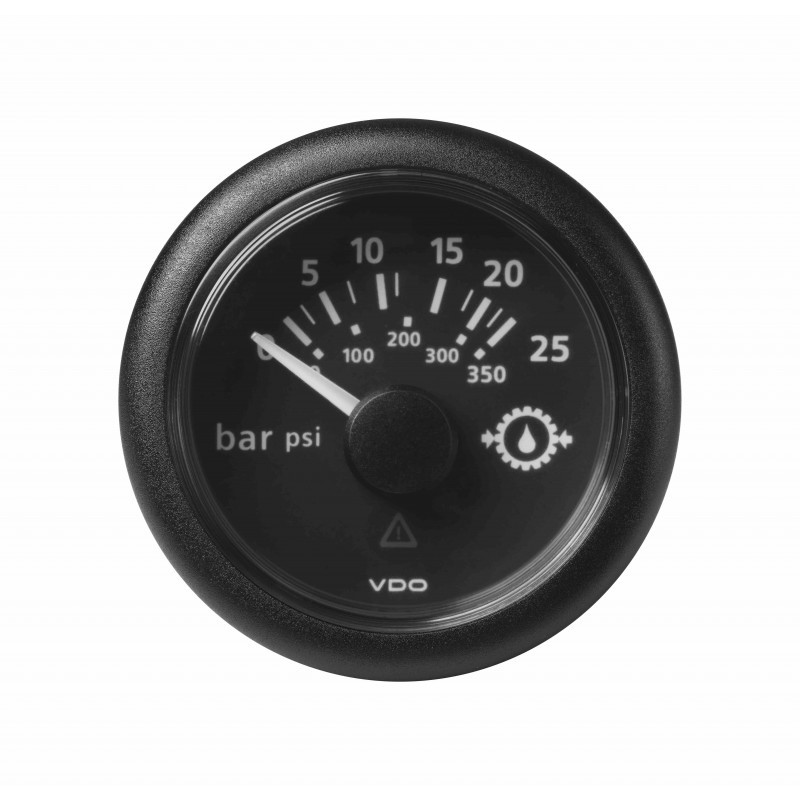

Veratron ViewLine - 52mm Black Gear Oil Pressure 25Bar-350PSI - 12-24V DLRB
Introducing the Veratron ViewLine Gear Oil Pressure Gauge, designed for high-performance and reliable measurements in automotive and marine applications. This instrument ensures accurate pressure readings with a clear and easy-to-read display.
- Sizes and Mounting: Installation (Hole) diameter and Outside diameter: 52 mm (2 1/16 Inch) and 59 mm (2 1/3 Inch); Installation depth: 50 mm; Locking height with Spinlock nut: 0.5 mm - 20 mm; Locking height with bracket: 2 mm - 15 mm (Optional); Flushmount: Optional kit A2C59510864
- Functionality: Gear oil pressure upper scale range: 0 to 25 Bar; Gear oil pressure under scale range: 0 to 350 PSI; Sensor signal input: Veratron Pressure sender 10 to 184 Ohm; Accuracy: < 3.6 angular degrees; Connection: Hirschmann 8 pins MQS connector
- Power Supply: Operating voltage: 8 to 32 Volt DC; Current consumption: < 140 mA including warning LED; Reverse polarity protection: Yes - 5 Minutes; Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 90°; Dial colour: Black; Dial illumination: Amber LED backlight 605nm; Pointer: White LED backlight; Warning LED: Red (632nm); Programming: Veratron USB software kit
-
