SKU:
CN NA2C59514676
€ 74,66
1-2 weeks delivery time
-
+

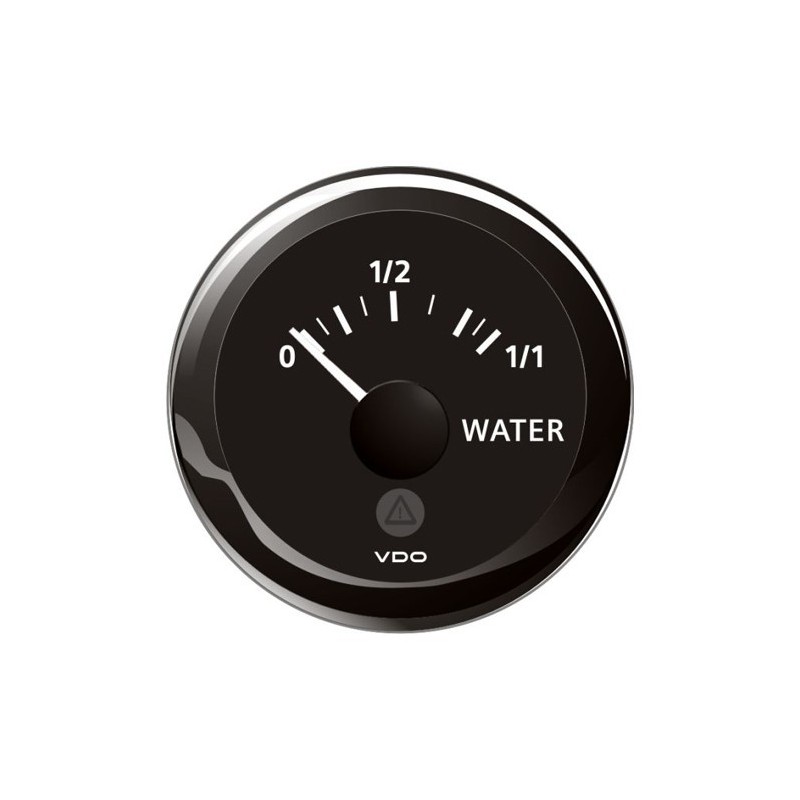

The Veratron ViewLine Black Fresh Water Level 4-20mA 12-24V DLRB is a high-performance gauge designed for measuring fresh water levels in marine environments. It features a capacitive sender for signal input and a measurement range of 0 to 1/2 to 1/1. This 52mm gauge is equipped with amber LED backlighting, a white LED pointer, and a red warning LED, with an accuracy of less than 3.6 angular degrees.
- Description
- Ask a Question
-
Veratron ViewLine - 52mm Black Fresh Water Level 4-20mA 12-24V DLRB
This is a high-performance fresh water level gauge designed for marine use, providing accurate and reliable water level measurements. It is equipped with advanced features for durability and functionality in various environments.
- Sizes and Mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Fresh water level measurement range: 0 - 1/2 - 1/1
- Sensor signal input fresh water level gauge: Veratron Capacitive sender 4 - 20mA
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 8 - 32 V DC
- Current consumption: < 60 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming: Veratron USB software kit
- Design:
- Model: Veratron ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round white (Interchangeable)
- Sizes and Mounting:
-
