SKU:
CN NA2C59514123
€ 74,66
1-2 weeks delivery time
-
+
The Veratron ViewLine Engine Oil Pressure Gauge 5Bar-80PSI is a 52mm instrument designed for accurate monitoring of oil pressure in vehicles and machinery. With a range from 0 to 5 Bar or 0 to 80 PSI, it uses a Veratron pressure sender. The gauge features amber LED backlighting and a white LED pointer, offering protection from reverse polarity and short circuits. It operates within 8-32 V DC and can be programmed using Veratron’s USB software kit for custom settings.
- Description
- Ask a Question
-

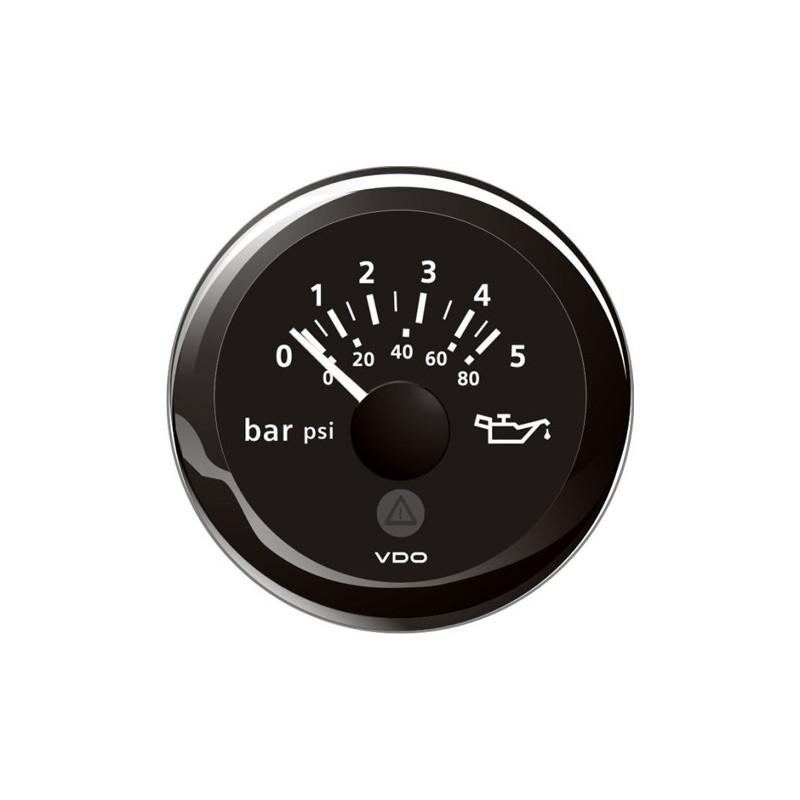

Veratron ViewLine - 52mm Black Engine Oil Pressure 5Bar-80PSI - 12-24V DLRB
This 52mm engine oil pressure gauge offers precise and reliable monitoring of your oil pressure levels. Designed for both durability and functionality, this gauge is an excellent choice for automotive and industrial use.
- Sizes and Mounting:
- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality:
- Engine oil pressure upper scale range: 0 to 5 Bar
- Engine oil pressure under scale range: 0 to 80 PSI
- Sensor signal input engine oil pressure: Veratron Pressure sender 10 to 184 Ohm
- Accuracy: < 3.6 angular degrees
- Connection: Hirschmann 8 pins MQS connector
- Power Supply:
- Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer:
- Deflection angle: 90°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
- Programming:
- Veratron USB software kit
- Sizes and Mounting:
-
