The Veratron Marine ViewLine Ammeter 150A in black is designed for accurate current measurement, with a range of -150A to +150A DC. It features a sleek black dial, amber LED backlighting, and reverse polarity protection, making it ideal for marine environments.
- Description
- Ask a Question
-

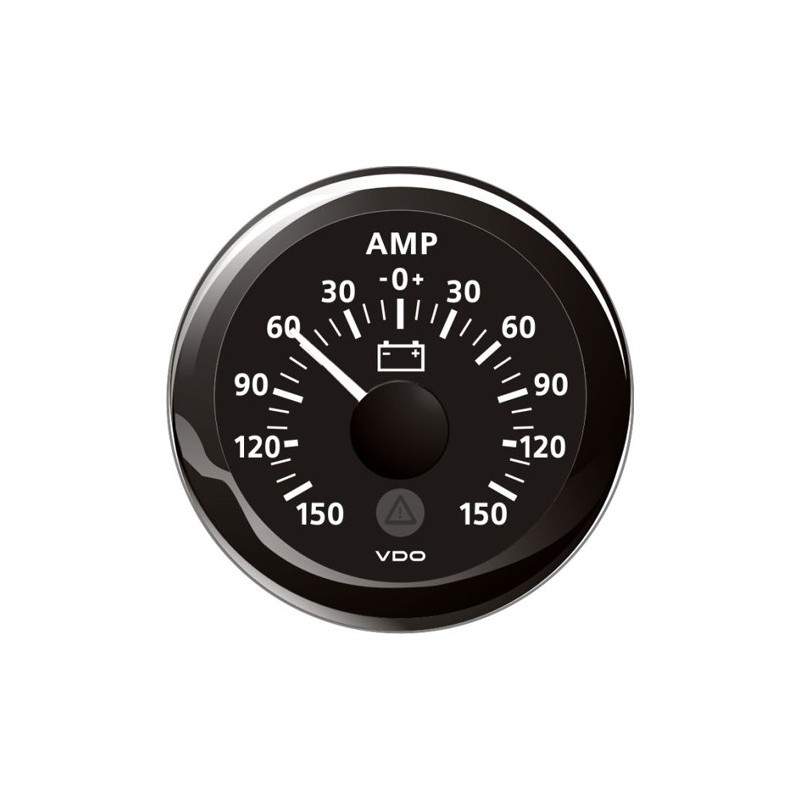

Veratron Marine ViewLine Ammeter 150A Black 52mm - DLRB
The Veratron Marine ViewLine Ammeter is a compact, high-performance device built for accurate current measurement in marine applications. It offers detailed monitoring of electrical systems, ensuring optimal performance. Key features include:
- Sizes and mounting: Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Functionality: Ampere measurement range: -150A to +150A DC
- Shunt: Not included
- Signal input ammeter: Veratron Shunt 0 to 60 mV DC
- Accuracy: < 2.5 % of the full scale reading
- Connection: Hirschmann 8 pins MQS connector
- Power supply: Operating voltage: 8 to 32 Volt DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute
- Dial & Pointer: Deflection angle: 240°
- Dial colour: Black
- Dial Illumination: Amber LED backlight 605nm
- Pointer: White LED backlight
- Warning LED: Red (632nm)
-
