The Pressure Sender 0-25 Bar - 1/8-27 NPTF provides reliable pressure readings for various fluids, ensuring efficient system monitoring with a range of 0 to 25 Bar and a maximum pressure of 50 Bar for short bursts. Operating between -25 °C and +100 °C, it functions on 6-24 V DC and features a dual-pole insulated return signal, along with an optional warning contact for added safety.
- Description
- Ask a Question
-

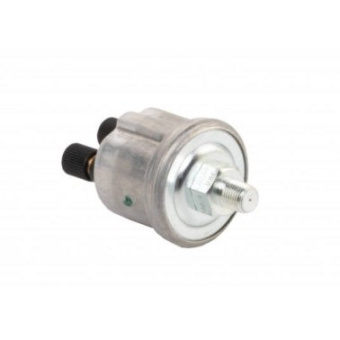

Pressure Sender 0-25 Bar - 1/8-27 NPTF
The Pressure Sender 0-25 Bar provides reliable pressure readings for various fluids, ensuring efficient system monitoring.
- Pressure measuring range: 0 - 25 Bar (0 - 362 PSI, 0 - 2500 KPa)
- Maximum pressure: 50 Bar for 2 seconds
- Thread: 1/8 - 27 NPTF

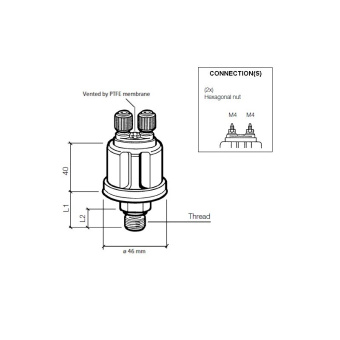

- Length of thread + nut (L1): 19.5 mm
- Thread length (L2): 11 mm
- Torque: 30 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Dual-Pole insulated return
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 Hexagonal nut
- Brand: VDO
- Product Number: 360-081-038-003C
-
