The Pressure Sender 0-2 Bar - 1/8-27 NPTF is built for reliable low-pressure measurements, offering a range of 0 to 2 Bar and a maximum pressure capability of 30 Bar for short durations. It operates within -25 °C to +100 °C, runs on 6-24 V DC, and provides a dual-pole insulated return signal, with optional warning contact features.
- Description
- Ask a Question
-
Pressure Sender 0-2 Bar - 1/8-27 NPTF
The Pressure Sender 0-2 Bar - 1/8-27 NPTF provides reliable pressure measurements for lower pressure applications. Its specifications include:
- Pressure measuring range: 0 - 2 Bar, 0 - 29 PSI, 0 - 200 KPa
- Maximum pressure: 30 Bar for 2 seconds
- Thread: 1/8 - 27 NPTF

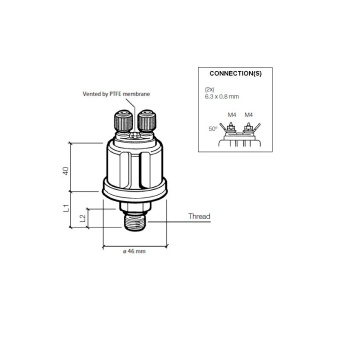

- Length of thread + nut (L1): 19.5 mm
- Thread length (L2): 11 mm
- Torque: 30 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
- Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Dual-Pole insulated return
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 AMP Male 6.3 x 0.8 mm 50°
- Brand: VDO
- Product Number: 360-081-032-025C
-
