€ 100,11
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Pressure Sender 0-2 Bar - M12 is suitable for applications needing accurate low-pressure measurements, with a range of 0 to 2 Bar and a maximum pressure of 30 Bar for short durations. It functions at temperatures between -25 °C and +100 °C, operates on 6-24 V DC, and includes a dual-pole insulated return signal, with optional warning contact features.
- Description
- Ask a Question
-
Pressure Sender 0-2 Bar - M12
The Pressure Sender 0-2 Bar - M12 is suitable for various applications requiring accurate pressure measurement. Key specifications include:
- Pressure measuring range: 0 - 2 Bar, 0 - 29 PSI, 0 - 200 KPa
- Maximum pressure: 30 Bar for 2 seconds

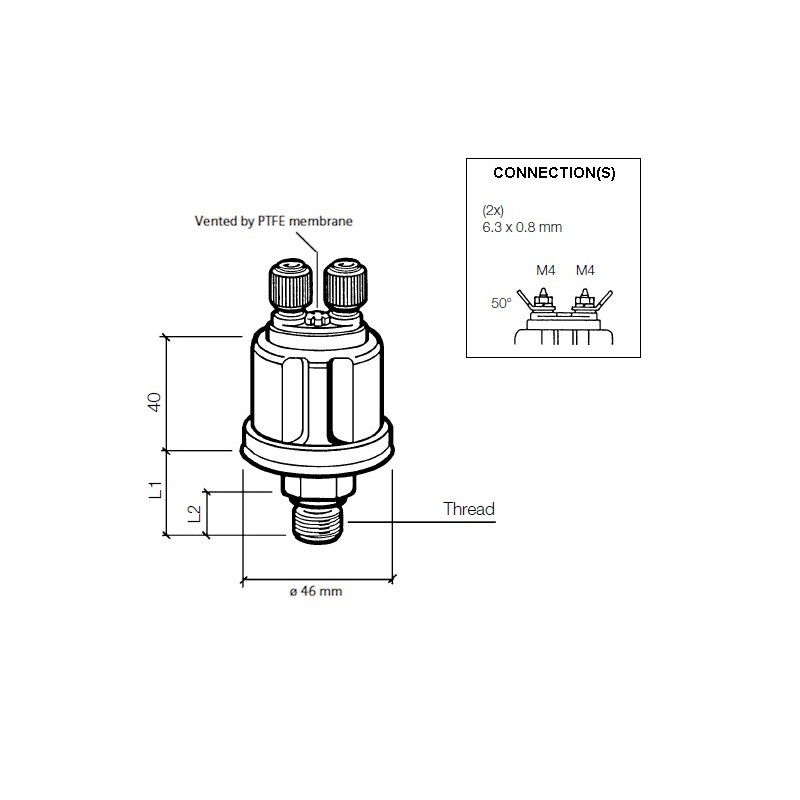

- Thread: M12 x 1.5
- Length of thread + nut (L1): 20.5 mm
- Thread length (L2): 12 mm
- Torque: 40 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
- Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Dual-Pole insulated return
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 AMP Male 6.3 x 0.8 mm 50°
- Brand: VDO
- Product Number: 360-081-032-011C
-
Ask a Question
