The Pressure Sender 0-10 Bar - M10 provides accurate pressure measurements with a range of 0 to 10 Bar and a maximum pressure of 30 Bar for short bursts. It is suitable for temperatures from -25 °C to +100 °C and operates on 6-24 V DC, featuring a dual-pole insulated return signal and an optional warning contact.
- Description
- Ask a Question
-

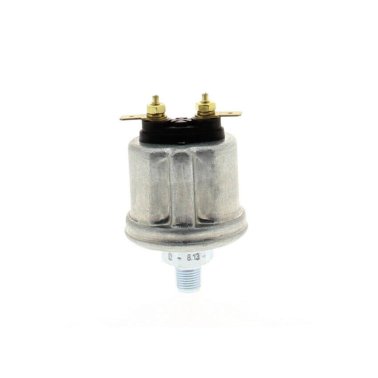

Pressure Sender 0-10 Bar - M10
The Pressure Sender 0-10 Bar - M10 is engineered for precise pressure measurements. Below are its main specifications:
- Pressure measuring range: 0 - 10 Bar, 0 - 145 PSI, 0 - 1000 KPa
- Maximum pressure: 30 Bar for 2 seconds

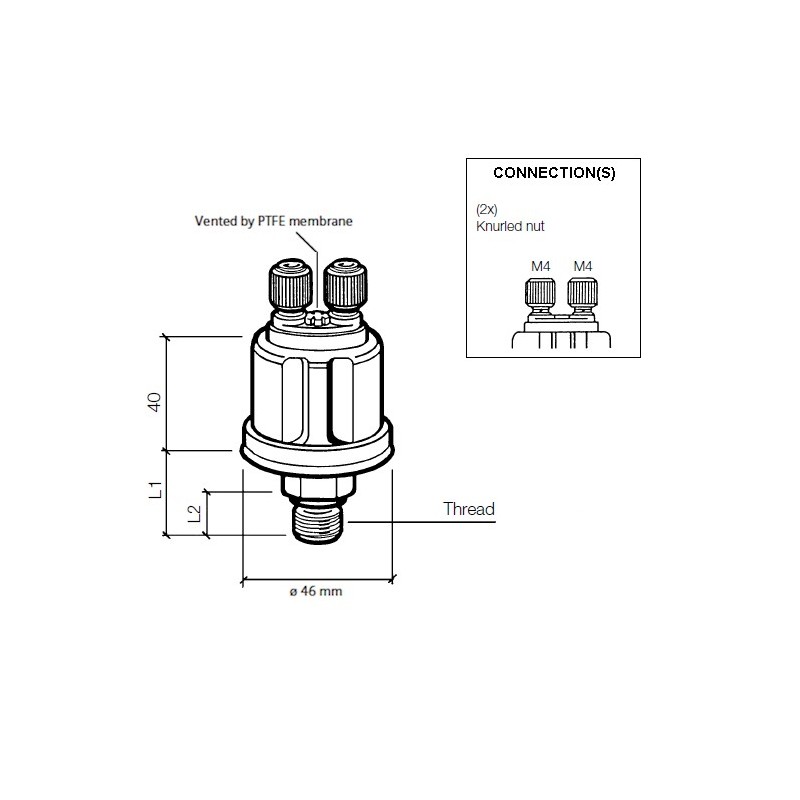

- Thread: M10 x 1 Tapered short
- Length of thread + nut (L1): 19.5 mm
- Thread length (L2): 11 mm
- Torque: 30 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
- Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Dual-Pole insulated return
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 Plastic knurled nut (2x)
- Brand: VDO
- Product Number: 360-081-032-003C
-
