VDO 323-803-001-011D Coolant Temperature Sender 120°C - 5/8-18 NF-3

SKU: VDM VDO323803001011D

€ 82,99

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Coolant Temperature Sender 120°C - 5/8-18 NF-3 provides comprehensive monitoring for engine fluids, supporting a temperature range of +40 °C to +120 °C, with a 5/8-18 NF-3 thread and a sender resistance range of 287.4 - 22.7 Ohm, including a built-in warning contact at 95 °C ± 3 °C.

Description
Ask a Question

Coolant Temperature Sender 120°C - 5/8-18 NF-3

This advanced sender provides comprehensive monitoring capabilities for various engine fluids.
- Temperature measuring range: +40 °C to +120 °C for precise monitoring
- Thread: 5/8-18 NF-3 for secure and reliable installation
- Sender resistance range: 287.4 - 22.7 Ohm for accurate signal output
- Single-pole common ground sensor signal: for stable electrical performance
- Built-in warning contact: at 95 °C ± 3 °C for enhanced safety
- Warning contact switching capacity: 1.2 - 3 Watt (non-inductive)
- Operating voltage: 6 - 24 V DC, suitable for various systems
- Minimum and maximum operating temperature: -40 °C to +150 °C for extreme environments
- Compatible mediums: Coolant, water, air, engine oil, transmission oil, and fuel

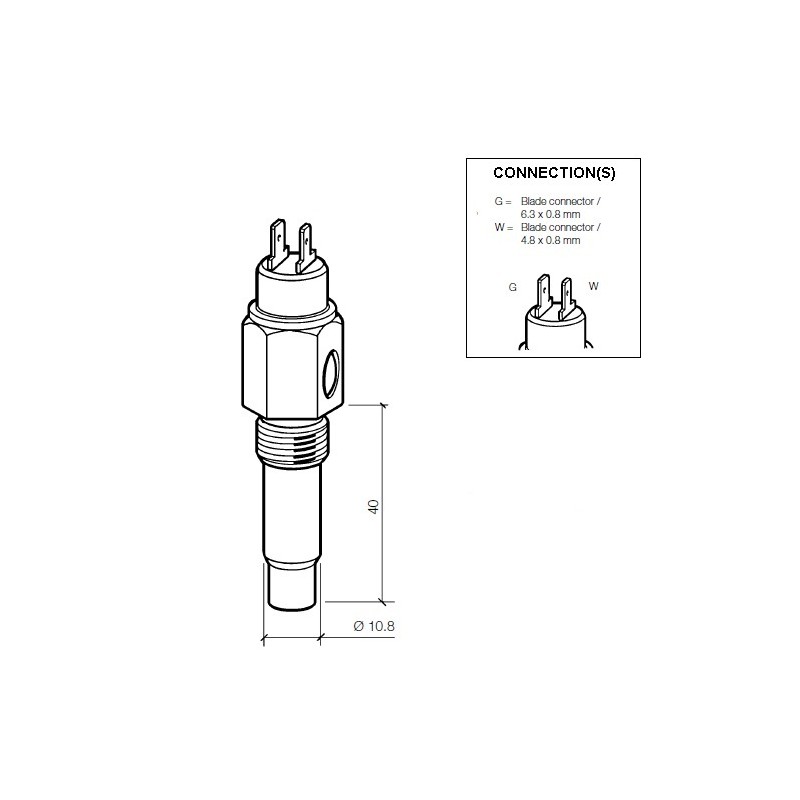

- Sender element length + thread (L): 40 mm for versatile installation
- Sensor diameter: 10.8 mm for compact design
- Torque specification: 20 Nm for proper and secure mounting
- Connector: AMP Male 6.3 x 0.8 mm for the temperature sender, AMP Male 4.8 x 0.8 mm for the warning contact
- Brand: VDO
- Product Number: 323-803-001-011D
