The T40 Standard Bail Trigger Snap Shackle offers strength and reliability for demanding applications. It is constructed from heat-treated 17-4 PH stainless steel and has a breaking load of 40,000 lb. The shackle includes a trigger-locking pin for enhanced safety. Its dimensions are A: 44.5 mm, B: 45.5 mm, and C: 241 mm, with a weight of 2.34 kg.
- Description
- Ask a Question
-

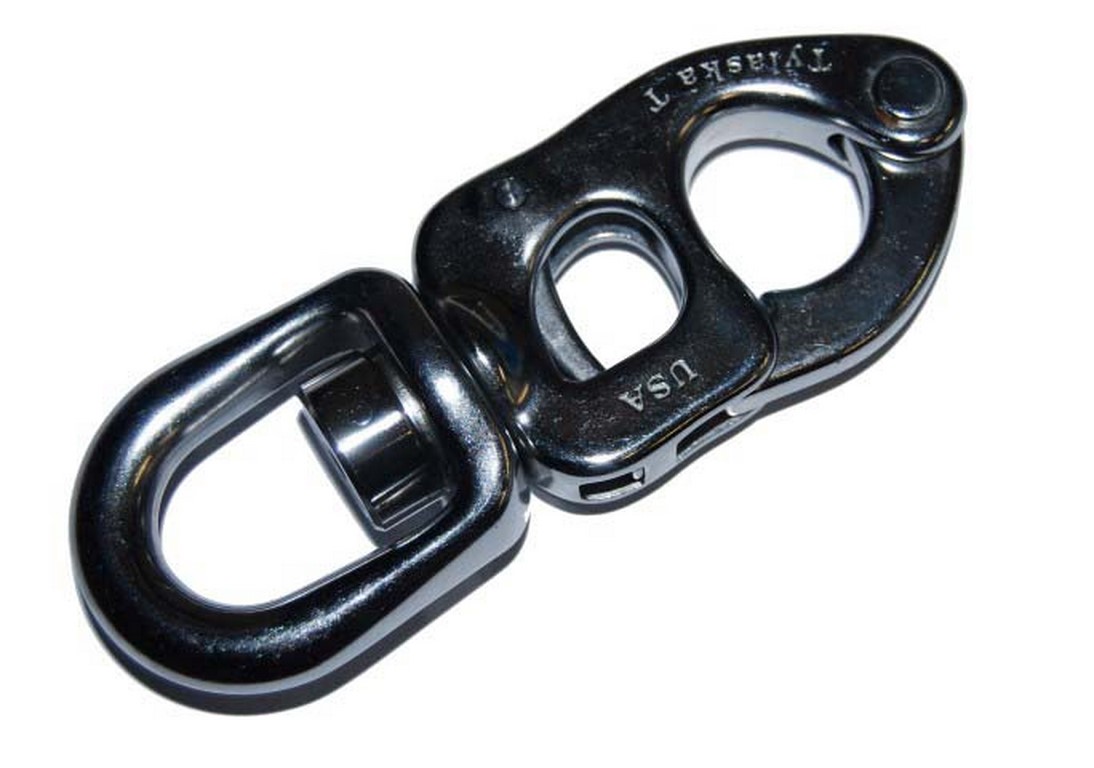

T40 Standard Bail Trigger Snap Shackle
The T40 Standard Bail Trigger Snap Shackle is designed to provide strength and reliability for demanding applications. It offers a breaking load of 40,000 lb and is crafted from heat-treated 17-4 PH stainless steel for enhanced durability.
- Breaking load: 40,000 lb
- Proof tested: 100% proof tested to max working load
- Material: Heat treated 17-4 PH stainless steel
- Bail types: Available in standard, large, and clevis bail types
- Trigger-locking pin: Included for safety

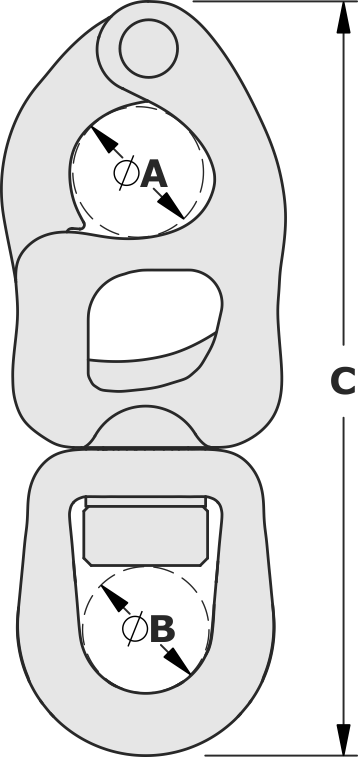

- Dimensions:
- A: 44.5 mm
- B: 45.5 mm
- C: 241 mm
- Weight: 2.34 kg
- Working Load Limit: 9070 kg
- Breaking Load: 18140 kg
- Product number: TY1040-S
- Brand: Tylaska
-
