SKU:
MM 004504
€ 923,12
1-2 weeks delivery time
-
+
The T30 Standard Bail Trigger Snap Shackle is designed for heavy-duty use, constructed from heat-treated 17-4 PH stainless steel for high strength. It offers a breaking load of 30,000 lb and is proof tested to the maximum working load. Available with different bail types, it also includes an optional locking pin for added security. The dimensions are A: 31.2 mm, B: 30.5 mm, and C: 166 mm, and it weighs 760 g.
- Description
- Ask a Question
-
T30 Standard Bail Trigger Snap Shackle
The T30 Standard Bail Trigger Snap Shackle is a durable and robust snap shackle designed for heavy-duty applications. Made with heat-treated 17-4 PH stainless steel, it is built to withstand high stress and provides a reliable, secure locking mechanism.
- Breaking load: 30,000 lb
- Proof tested: 100% proof tested to max working load
- Material: Heat treated 17-4 PH stainless steel
- Bail types: Available in standard, large, and clevis bail types
- Optional locking pin: Available for additional security

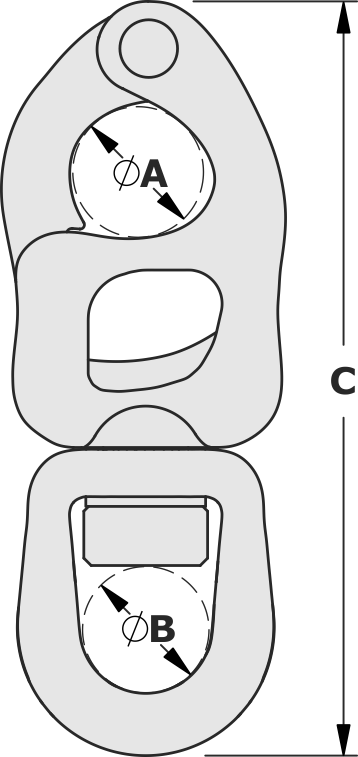

- Dimensions:
- A: 31.2 mm
- B: 30.5 mm
- C: 166 mm
- Weight: 760 g
- Working Load Limit: 6800 kg
- Breaking Load: 13610 kg
- Product number: TY1030-S
- Brand: Tylaska
-
