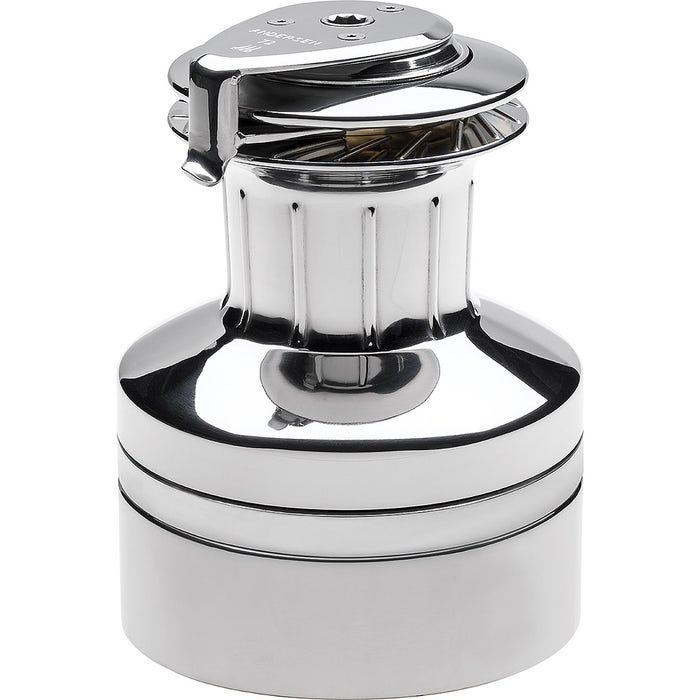

Andersen RA2072015200 72ST Winch FS Compact Above Deck 24V

72ST Winch FS Compact Above Deck 24V

The 72ST Winch FS Compact combines a powerful, compact design with advanced technology to deliver exceptional performance for sailing enthusiasts. This winch integrates motor, gears, and power controls into a single unit, offering efficient operation and easy installation without the need for an external control box. Available in both above-deck and below-deck versions, it is designed for monohull boats ranging from 55 to 80 feet.

• Compact unit with integrated motor, gears, and power controls
• High line speed and strong load capacity for demanding sailing conditions
• Brushless motor reduces wear and boosts efficiency
• Consumes 30-50% less power than conventional electric motors
• Simple installation, no external control box required
• Available in above-deck and below-deck models

Technical Specifications

• Suitable for Genoa Halyard (Monohull 21.9-24.4 m / 72-80 ft)
• Suitable for Genoa Sheet (Monohull 16.8-18.6 m & 18.9-21.6 m / 55-71 ft)
• Suitable for Main Halyard and Main Sheet (Monohull 21.9-24.4 m / 72-80 ft)
• Suitable for Spinnaker Halyard (Monohull 21.9-24.4 m / 72-80 ft)
• Suitable for Spinnaker Sheet (Monohull 18.9-21.6 m / 62-71 ft)
• Weight: 51 kg
• Gear ratios: 5.8:1 (1st speed), 20.3:1 (2nd speed)
• Power ratios: 20.7:1 (1st speed), 72.6:1 (2nd speed)
• Manual speeds: 2
• Electric speeds: Variable
• Voltage: 24V

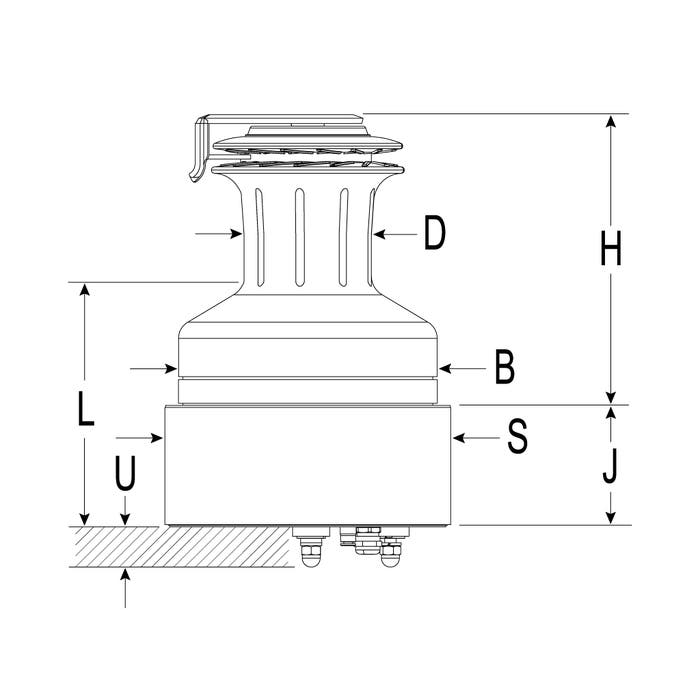

Dimensions

• Base diameter (B): 280 mm
• Drum diameter (D): 140 mm
• Height (H): 273 mm
• Maximum Deck height (K Max Deck): 45 mm
• Line entry length (L): 208 mm

Additional Information

• Supplied with 41mm (1 5/8”) terminal extensions
• Optional longer terminal extension kits available (part number 877800)
• Includes 2 control buttons (RA866000) and 2 control cables (RD877610, 1m)

Product Number: RA2072015200

Brand: Andersen
