Andersen RA2072014100 72ST Winch FS Compact Below Deck 12V

SKU: MM 031107

€ 14.274,44

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The 72ST Winch FS Compact Below Deck 12V offers powerful performance with a compact design, integrating motor and controls into a single unit. It is easy to install without an external control box and suitable for different monohull boat sizes, ensuring high efficiency and reduced power consumption.

Description
Ask a Question

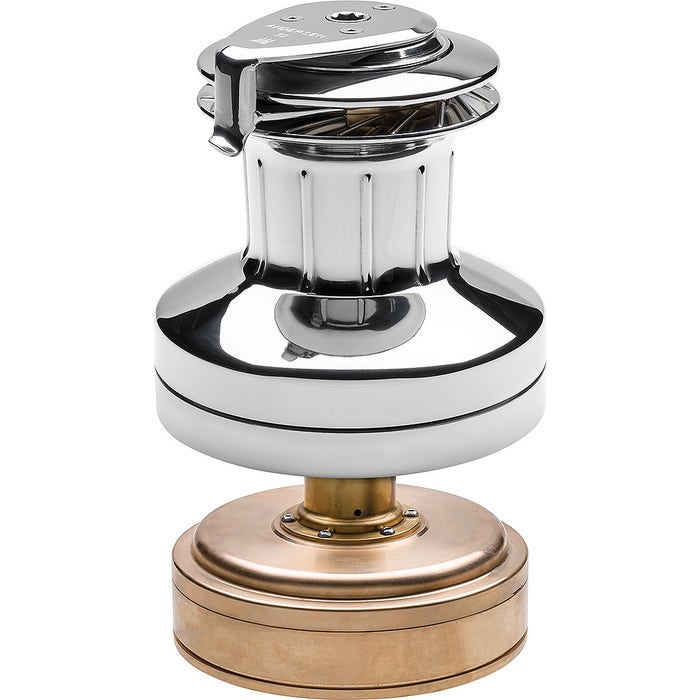

72ST Winch FS Compact Below Deck 12V

The 72ST Winch FS Compact Below Deck 12V combines a compact design with powerful performance. It integrates the motor, gears, and power controls into a single unit, delivering impressive speed and load capacity while maintaining energy efficiency. Designed for easy installation without the need for an external control box, this winch is suitable for a variety of monohull sailboat sizes and offers versions both above and below deck.
- Compact design with integrated motor, gears, and controls
- High line speed and strong load capacity
- Simple installation, no external control box required
- Available in above deck and below deck versions
- Brushless motor reduces wear and enhances efficiency
- Consumes 30-50% less power than traditional electric motors
Specifications
- Suitable for Genoa Halyard on monohull boats 21.9–24.4 m (72–80 ft)
- Suitable for Genoa Sheet on monohull boats 16.8–21.6 m (55–71 ft)
- Main Halyard and Main Sheet suitable for boats 21.9–24.4 m (72–80 ft)
- Spinnaker Halyard suitable for boats 21.9–24.4 m (72–80 ft)
- Spinnaker Sheet suitable for boats 18.9–21.6 m (62–71 ft)
- Weight: 45 kg
- Operating voltage: 12 V
- Extensions available to fit longer deck thickness ("K" dimension)
- Supplied with 2 control buttons (RA866000) and 2 control cables (RD877610, 1 m length)

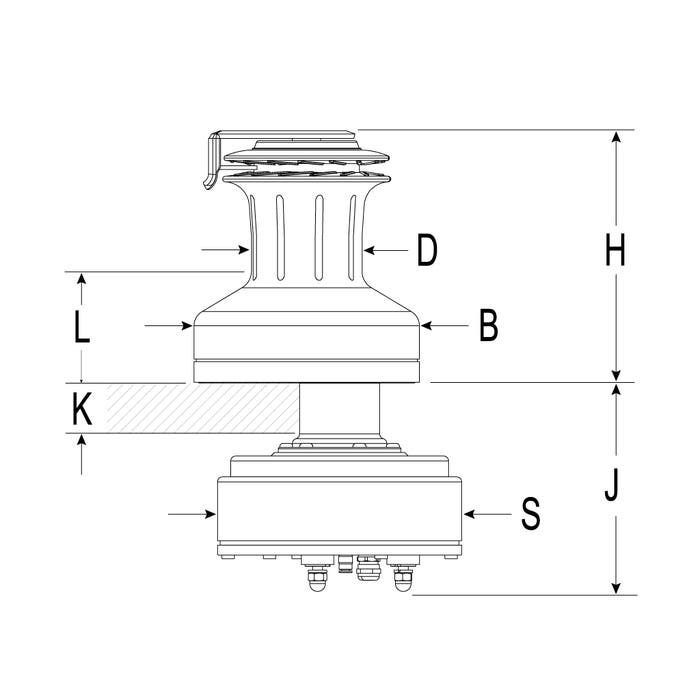

Dimensions
- Base diameter ("B"): 280 mm
- Drum diameter ("D"): 140 mm
- Height ("H"): 283 mm
- Motor depth ("J"): 178 mm
- Maximum deck thickness ("K"): 52 mm
- Line entry ("L"): 130 mm
Product Number: RA2072014100

Brand: Andersen
