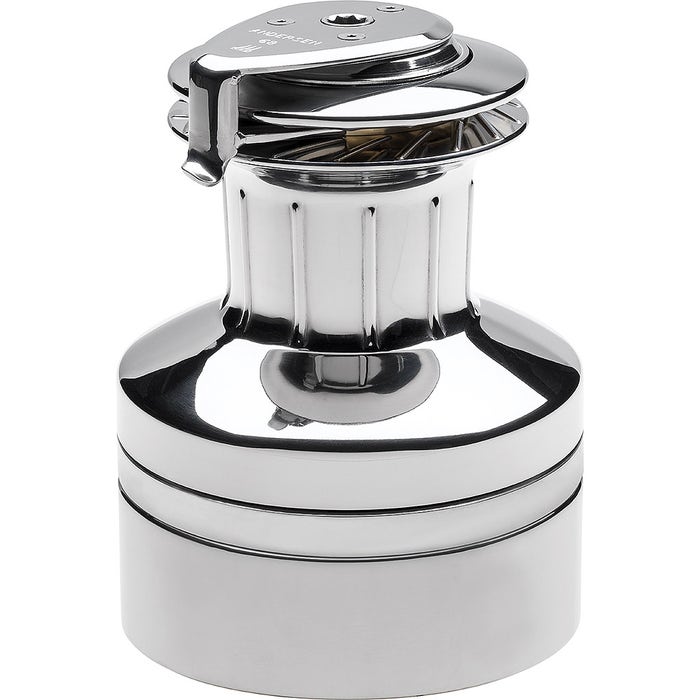

Andersen RA2068015200 68ST Winch FS Compact Above Deck 24V

68ST Winch FS Compact Above Deck 24V

The 68ST Winch FS Compact is a highly efficient and space-saving winch designed for sailing vessels. It combines motor, gears, and power controls into one integrated unit, providing excellent line speed and load capacity. Installation is straightforward with no need for an external control box. This model comes in two versions: Above Deck and Below Deck.

• Compact design integrating motor, gears, and controls in one unit
• High line speed and strong load capacity
• Easy installation without an external control box
• Available in Above Deck and Below Deck versions
• Brushless motor reduces wear and boosts efficiency
• Consumes 30-50% less power compared to traditional electric motors

Technical Specifications

• Recommended for monohull boats with Genoa sheet sizes: 14.9-16.5 m (49-54 ft) and 16.8-18.6 m (55-61 ft)
• Main halyard monohull boat size: 21.9-24.4 m
• Main sheet sizes: 18.9-21.6 m (62-71 ft) and 21.9-24.4 m (72-80 ft)
• Reef line sizes: over 24.4 m (80+ ft)
• Spinnaker halyard: 21.9-24.4 m (72-80 ft)
• Spinnaker sheet: 16.8-18.6 m (55-61 ft) and 18.9-21.6 m (62-71 ft)
• Weight: 51 kg
• Gear ratios: 5.8:1 (1st speed), 18.8:1 (2nd speed)
• Power ratios: 20.7:1 (1st speed), 67.1:1 (2nd speed)
• Manual speeds: 2
• Voltage: 24V

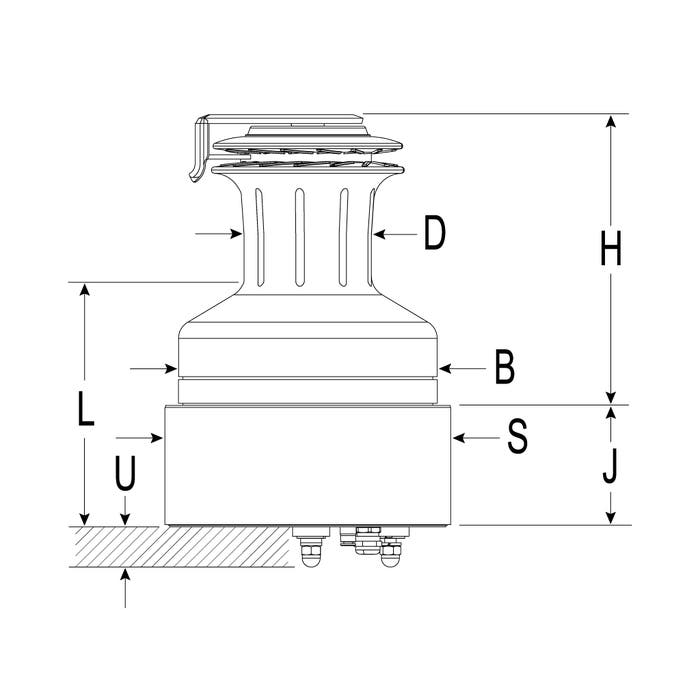

Dimensions

• Base diameter (B): 280 mm
• Drum diameter (D): 140 mm
• Height (H): 275 mm
• Maximum deck height (K Max): 45 mm
• Line entry length (L): 209 mm

Additional Information

• Each Compact Motor™ Above Deck winch comes with a set of 41 mm (1 5/8”) terminal extensions.
• Additional terminal extension kits (part number 877800) can be ordered for longer “U” dimensions.
• Size 68ST & 72ST Compact Motor™ winches include 2 control buttons (RA866000) and 2 control cables (RD877610, 1m/39”).

Product number: RA2068015200

Brand: Andersen
