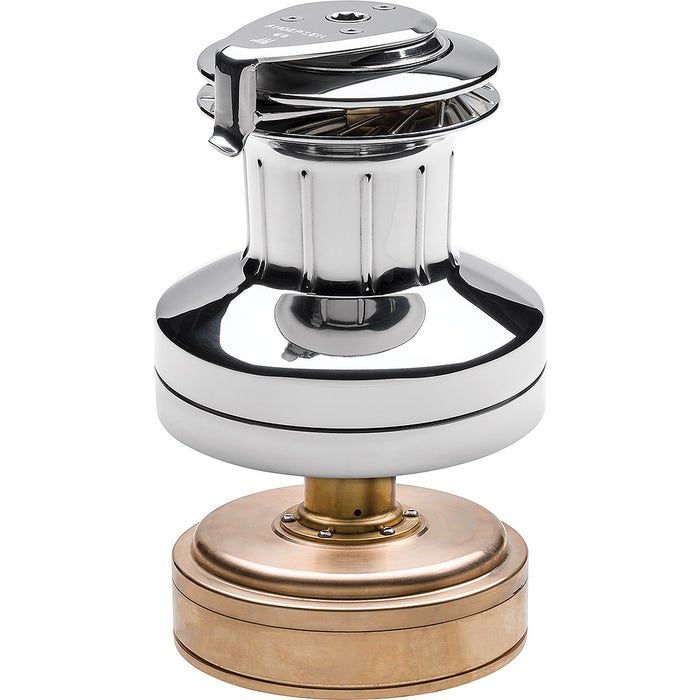

Andersen RA2068014200 68ST Winch FS Compact Below Deck 24V

68ST Winch FS Compact Below Deck 24V

The 68ST Winch FS Compact Below Deck 24V offers a powerful, space-saving solution for monohull sailboats. It combines the motor, gears, and power controls into a single unit, making installation straightforward without the need for an external control box. Designed for efficiency, this winch features a brushless motor that reduces wear and power consumption by 30-50% compared to traditional electric motors. Available in versions for both above and below deck mounting, it provides impressive line speed and load capacity tailored for a range of boat sizes.

• Compact Design: Integrates motor, gears, and controls in one unit for easy installation.
• High Performance: Delivers impressive line speed and can handle heavy loads efficiently.
• Brushless Motor: Increases durability and reduces maintenance by eliminating wear and tear.
• Energy Efficient: Consumes 30-50% less power than conventional electric motors.
• Installation Options: Available for both above deck and below deck setups.

Specifications

• Suitable Boat Sizes (Genoa Sheet Monohull): 14.9-16.5 m (49-54 ft), 16.8-18.6 m (55-61 ft)
• Main Halyard Monohull Boat Size: 21.9-24.4 m
• Main Sheet Monohull Boat Size: 18.9-21.6 m, 21.9-24.4 m (62-71 ft, 72-80 ft)
• Reef Line Monohull Boat Size: 24.4+ m (80+ ft)
• Spinnaker Halyard Monohull Boat Size: 21.9-24.4 m (72-80 ft)
• Spinnaker Sheet Monohull Boat Size: 16.8-18.6 m, 18.9-21.6 m (55-61 ft, 62-71 ft)
• Weight: 45 kg
• Speeds: 2 manual speeds, variable electric speeds
• Voltage: 24V
• Additional Notes: Extensions available for longer "K" dimensions. Comes with 2 RA866000 control buttons and 2 RD877610 1m (39”) control cables.

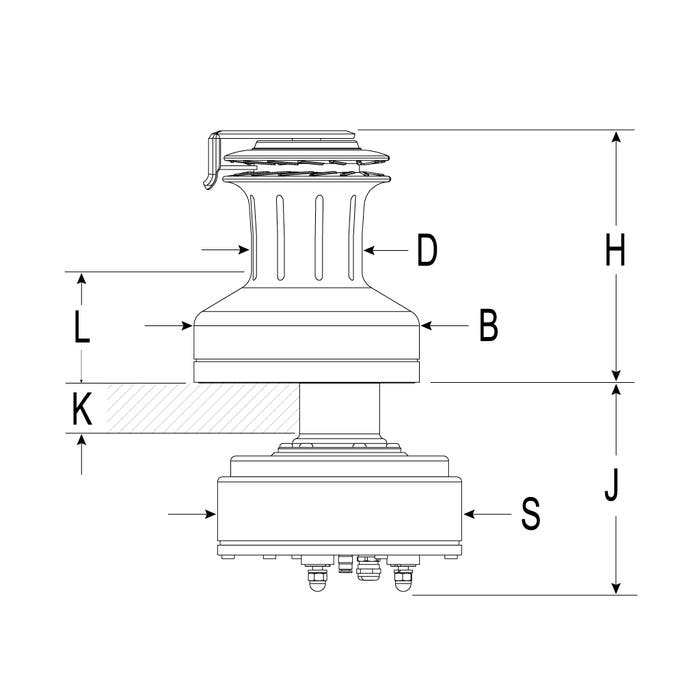

Dimension Details

• Base Diameter (B): 280 mm
• Drum Diameter (D): 140 mm
• Height (H): 283 mm
• Motor Depth (J): 178 mm
• Maximum Deck Thickness (K): 52 mm
• Line Entry (L): 130 mm

Product number: RA2068014200

Brand: Andersen
