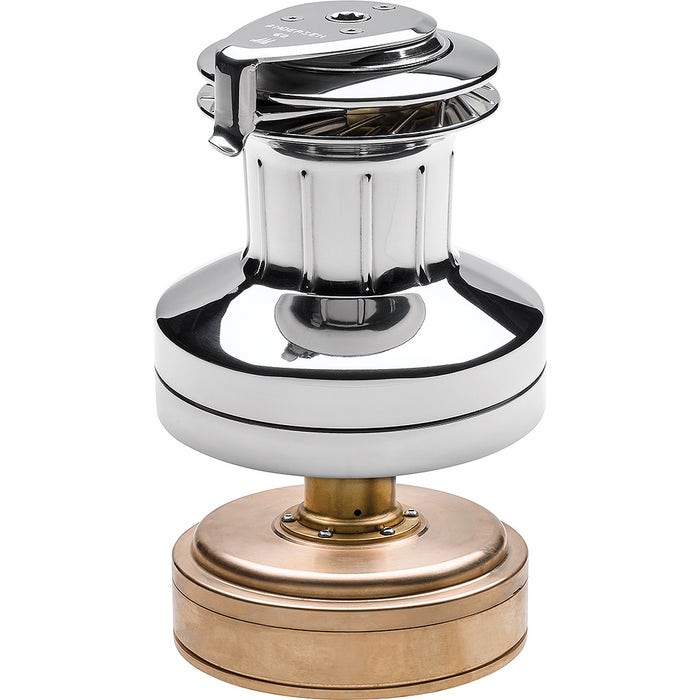

Andersen RA2068014100 68ST Winch FS Compact Below Deck 12V

68ST Winch FS Compact Below Deck 12V

The 68ST Winch FS Compact Below Deck 12V combines sleek design with powerful performance, ideal for demanding marine environments. Its unique features include an integrated motor, gears, and power controls in one unit, providing ease of installation and superior efficiency. Below is a detailed overview of its specifications and features:

• Compact Design: Combines motor, gears, and power controls into one compact unit for streamlined operation.
• Impressive Line Speed: Delivers high-speed performance with a remarkable maximum load capacity.
• Energy Efficient: Consumes 30-50% less power than conventional electric motors, ensuring longer battery life and lower energy costs.
• Carbon Brush-Free Motor: The motor design eliminates carbon brush wear, improving longevity and reducing maintenance needs.
• Compatibility: Compatible with the ANDERSEN Modular Power System™ and available in two versions: Above deck and Below deck.
• Available in Stainless Steel or Non-Stainless Versions: Offers options to suit different environmental conditions and aesthetic preferences.

Specifications

• Genoa Sheet Monohull Boat Size: 14.9-16.5 meters (49-54 feet), 16.8-18.6 meters (55-61 feet)
• Main Halyard Monohull Boat Size: 21.9-24.4 meters
• Main Sheet Monohull Boat Size: 18.9-21.6 meters (62-71 feet), 21.9-24.4 meters (72-80 feet)
• Reef Line Monohull Boat Size: 24.4 meters (80 feet) and above
• Spinnaker Halyard Monohull Boat Size: 21.9-24.4 meters (72-80 feet)
• Spinnaker Sheet Monohull Boat Size: 16.8-18.6 meters (55-61 feet), 18.9-21.6 meters (62-71 feet)
• Weight: 45 kg
• Manual Speeds: 2
• Electric Speeds: Variable
• Voltage: 12V
• Extensions: Available for longer “K” dimensions.

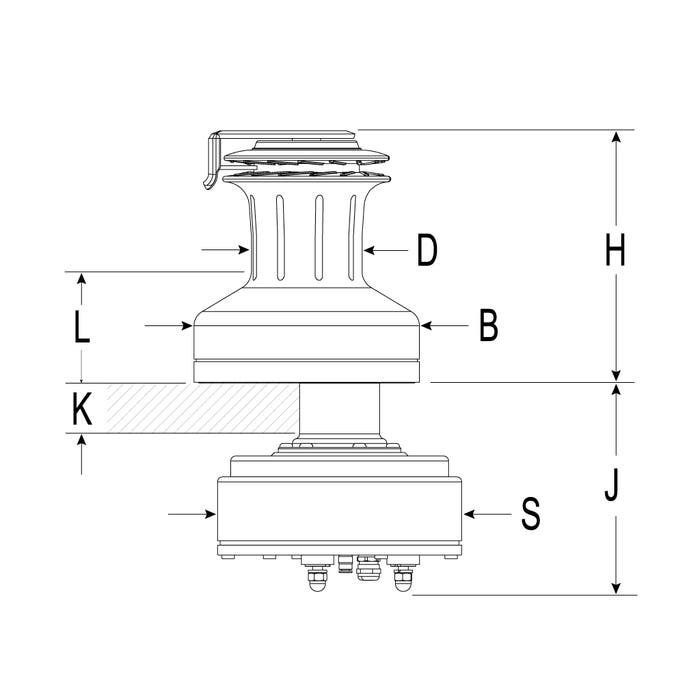

Dimensions

• Base "B" Diameter: 280 mm
• Drum "D" Diameter: 140 mm
• Height "H": 283 mm
• Motor Depth "J": 178 mm
• Max Deck "K": 52 mm
• Line Entry "L": 130 mm

Product Number: RA2068014100

Brand: Andersen
