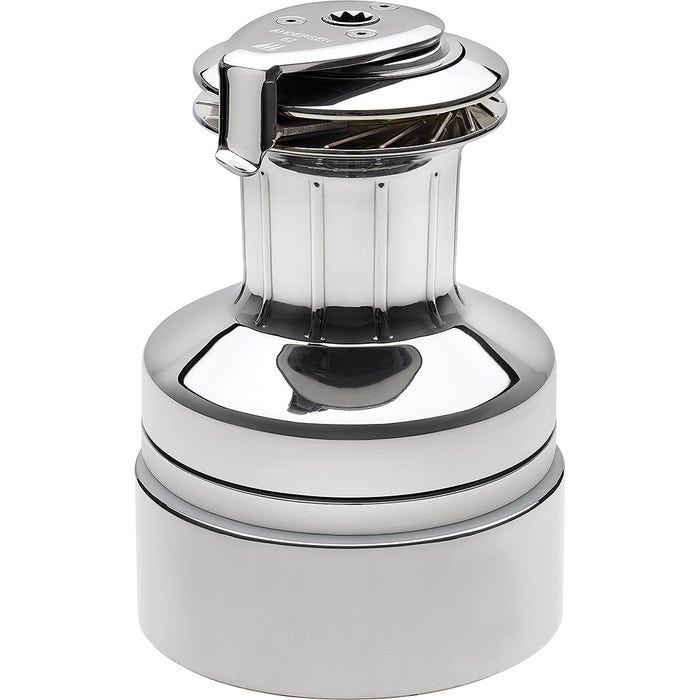

Andersen RA2062015100 62ST Winch FS Compact Above Deck 12V

62ST Winch FS Compact Above Deck 12V

The 62ST Winch FS Compact is a powerful and efficient winch designed for marine use. It offers impressive line speeds and maximum load capabilities, making it a reliable choice for sailing enthusiasts. The winch is easy to install and comes in two variants: above deck and below deck. It is available in either full stainless steel or non-stainless versions to suit different preferences and environments.

• High-efficiency winch motor ensures strong performance
• Fast line speed combined with excellent maximum load capacity
• Simple installation process suitable for various deck setups
• Available in two configurations: above deck and below deck mounting
• Winch motor mounted directly on the deck for optimal operation
• Choice of full stainless steel or non-stainless steel models

Specifications

• Suitable for Genoa Halyard Monohull Boats sized 16.8–18.6 m (55–61 ft) and 18.9–21.6 m (62–71 ft)
• Suitable for Genoa Sheet Monohull Boats sized 13.4–14.6 m (44–48 ft) and 14.9–16.5 m (49–54 ft)
• Main Halyard and Main Sheet Monohull Boats sized 18.9–21.6 m (62–71 ft)
• Reef Line Monohull Boats sized 21.9–24.4 m (72–80 ft)
• Spinnaker Halyard Monohull Boats sized 16.8–18.6 m (55–61 ft) and 18.9–21.6 m (62–71 ft)
• Spinnaker Sheet Monohull Boats sized 16.8–18.6 m (55–61 ft)
• Weight: 34 kg
• Gear ratios: 3.7:1 (1st speed) and 14.4:1 (2nd speed)
• Power ratios: 16.1:1 (1st speed) and 62.6:1 (2nd speed)
• Manual speeds: 2
• Electric speeds: Variable
• Voltage: 12V

Additional Information

• All Compact Motor™ Above Deck winches come with one set of 41mm (1 5/8”) terminal extensions
• Additional terminal extension kits (part number 877800) are available for longer “U” dimensions

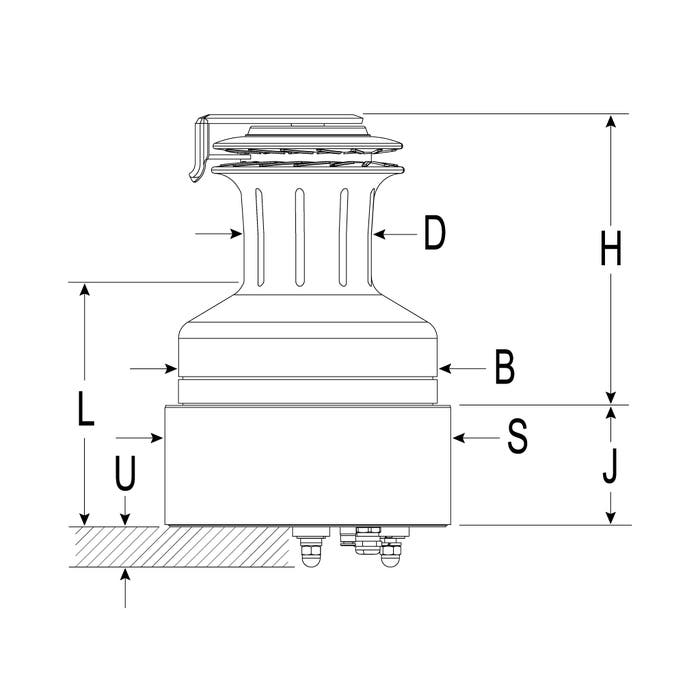

Dimension Details

• Base diameter ("B"): 230 mm
• Drum diameter ("D"): 115 mm
• Height ("H"): 251 mm
• Maximum deck thickness ("K Max"): 45 mm
• Line entry length ("L"): 196 mm

Product Number: RA2062015100

Brand: Andersen
