Andersen RA2058015200 58ST Winch FS Compact Above Deck 24V

58ST Winch FS Compact Above Deck 24V

The 58ST Winch FS Compact Above Deck 24V is a high-performance winch designed for sailing enthusiasts seeking efficiency and reliability. It combines advanced technology and compact engineering to deliver powerful line handling with ease of installation and maintenance.

• Compact design integrates motor, gears, and power controls into a single unit.
• Delivers impressive line speed and strong load capacity for demanding sailing conditions.
• Easy to install with no need for an external control box, simplifying setup.
• Available in two configurations: Above Deck and Below Deck versions.
• Brushless motor technology minimizes wear and enhances operational efficiency.
• Consumes 30-50% less power compared to traditional electric motors, improving energy efficiency.

Specifications

• Suitable for Genoa Halyard Monohull Boats sized 16.8-18.6 m (55-61 ft) and 18.9-21.6 m (62-71 ft).
• Compatible with Genoa Sheet Monohull Boats sized 13.4-14.6 m (44-48 ft).
• Supports Main Halyard and Main Sheet Monohull Boats within 16.8-18.6 m (55-61 ft) and 18.9-21.6 m (62-71 ft).
• Reef Line fits Monohull Boats sized 18.9-21.6 m (62-71 ft) and 21.9-24.4 m.
• Spinnaker Halyard and Sheet suitable for boats from 14.9-18.6 m (49-61 ft).
• Weight: 34 kg.
• Gear Ratios: 1st speed - 3.7:1, 2nd speed - 13.1:1.
• Power Ratios: 1st speed - 16.1:1, 2nd speed - 57.7:1.
• Manual operation offers two speeds; electric speeds are variable.
• Operating voltage: 24V.
• Each winch includes one set of 41mm (1 5/8”) terminal extensions; additional extension kits available.

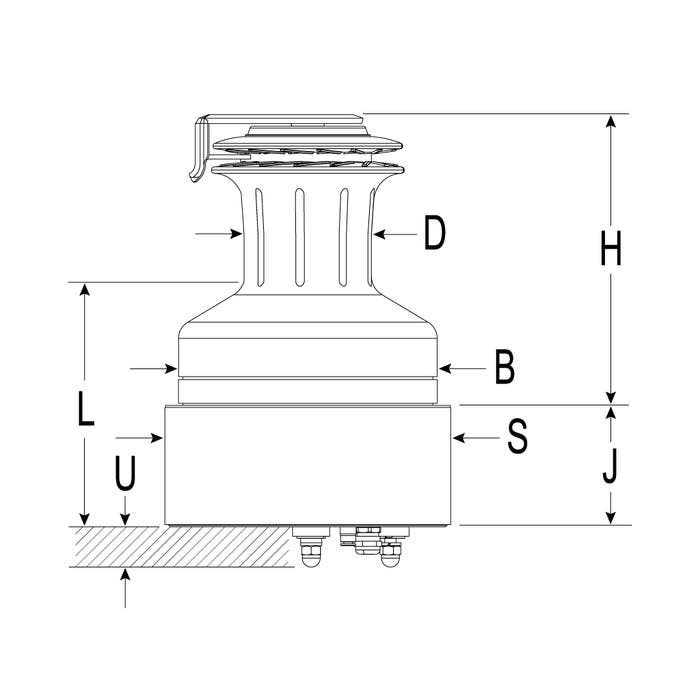

Dimensions

• Base diameter (B): 230 mm.
• Drum diameter (D): 115 mm.
• Height (H): 251 mm.
• Maximum deck height (K Max): 45 mm.
• Line entry length (L): 196 mm.

Product number: RA2058015200

Brand: Andersen
