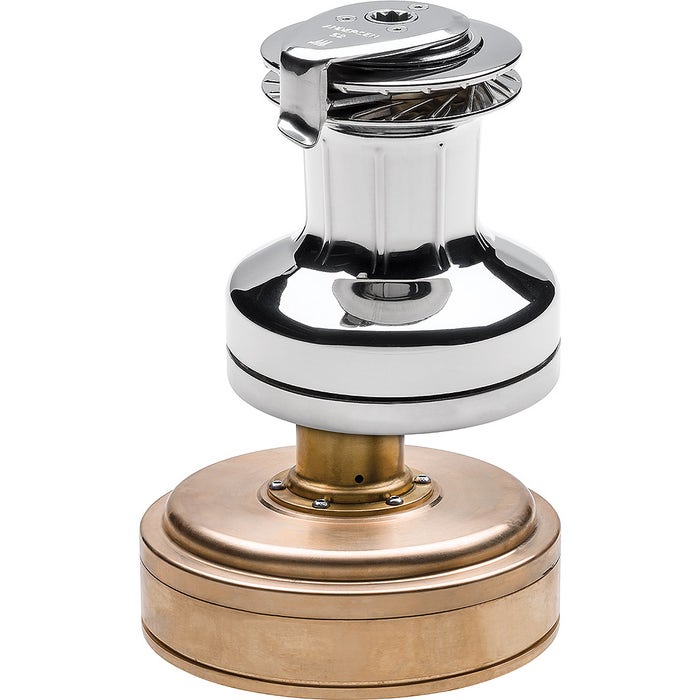

Andersen RA2058014100 58ST Winch FS Compact Below Deck 12V

58ST Winch FS Compact Below Deck 12V

The 58ST Winch FS Compact Below Deck 12V by Andersen is a highly efficient and compact winch designed to integrate motor, gears, and power controls seamlessly into a single unit. It offers impressive line speed and a strong maximum load capacity, making it ideal for various sailing applications. Easy to install and compatible with the Andersen Modular Power System™, this winch is available in both above and below deck versions. Its motor is built without carbon brushes, reducing wear and tear and consuming 30-50% less power compared to conventional electric motors.

• Compact design combining motor, gears, and controls in one unit
• High line speed with excellent maximum load capacity
• Simple installation and compatible with Andersen Modular Power System™
• Available in two configurations: above deck and below deck
• Winch directly mounted on the motor for improved efficiency
• Motor without carbon brushes for reduced wear and longer life
• Consumes 30-50% less power than traditional electric motors
• Available in full stainless steel or non-stainless versions

• Suitable boat sizes:
  • Genoa Halyard Monohull: 16.8-18.6 m (55-61 ft), 18.9-21.6 m (62-71 ft)
  • Genoa Sheet Monohull: 13.4-14.6 m (44-48 ft)
  • Main Halyard Monohull: 16.8-18.6 m, 18.9-21.6 m
  • Main Sheet Monohull: 16.8-18.6 m, 18.9-21.6 m (55-61 ft, 62-71 ft)
  • Reef Line Monohull: 18.9-21.6 m, 21.9-24.4 m (62-71 ft)
  • Spinnaker Halyard Monohull: 16.8-18.6 m, 18.9-21.6 m (55-61 ft, 62-71 ft)
  • Spinnaker Sheet Monohull: 14.9-16.5 m, 16.8-18.6 m (49-54 ft, 55-61 ft)
• Weight: 36 kg
• Manual speeds: 2
• Electric speeds: Variable
• Voltage: 12V
• Extensions available for longer "K" dimensions

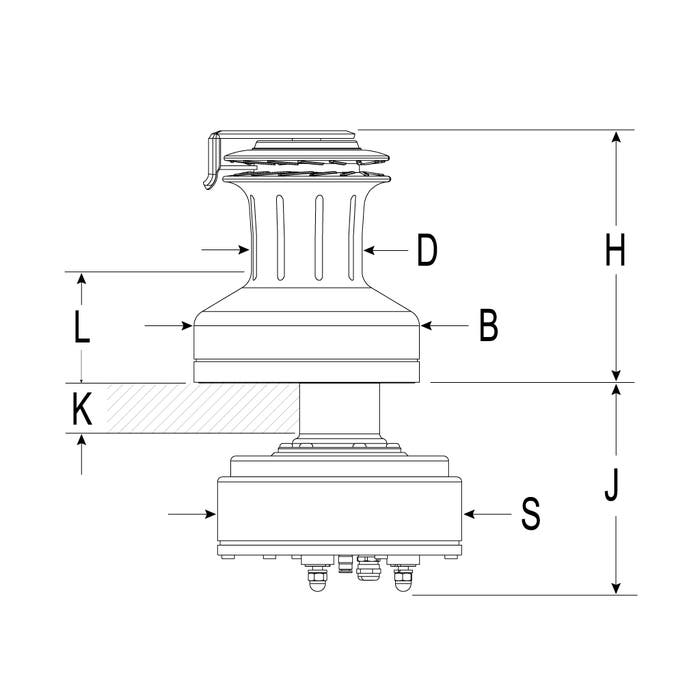

• Technical specifications:
  • Base diameter "B": 230 mm
  • Drum diameter "D": 115 mm
  • Height "H": 261 mm
  • Motor depth "J": 174 mm
  • Maximum deck thickness "K": 48 mm
  • Line entry "L": 121 mm

• Product number: RA2058014100
• Brand: Andersen
