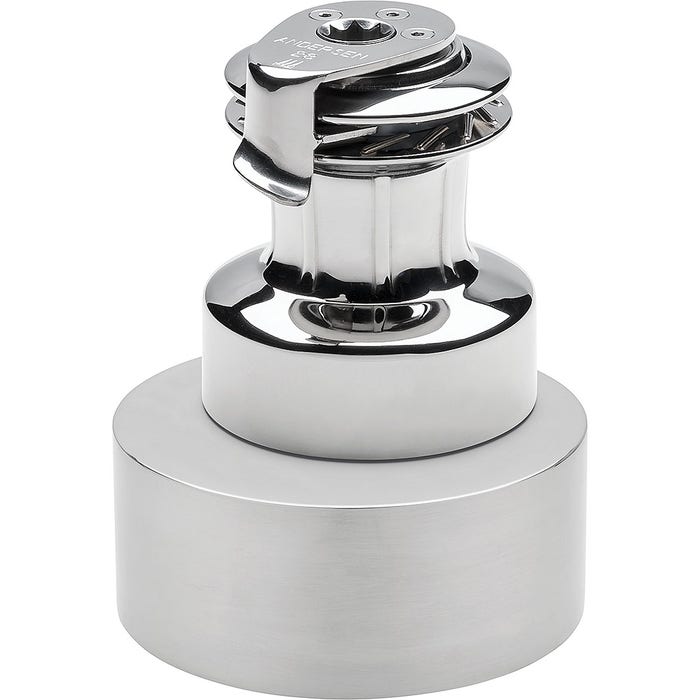

Andersen RA2040015100 40ST Winch FS Compact Above Deck 12V

40ST Winch FS Compact Above Deck 12V

The 40ST Winch FS Compact Above Deck 12V is a powerful and efficient winch, designed for easy installation and robust performance. Ideal for a variety of monohull boat sizes, this winch offers impressive line speed and maximum load capacity. Available in two versions, it comes with full stainless or non-stainless options to suit your needs.

• Highly efficient winch motor: Delivers optimal performance with a focus on reliability.
• Impressive line speed: Quickly and efficiently handles your boat's load.
• Easy to install: Designed for straightforward installation, saving time and effort.
• Available in two versions: Choose between Above Deck and Below Deck options based on your preference.
• Winch mounted directly on the motor for deck: Simplifies the setup for easy use.
• Material options: Available in Full Stainless Steel or Non-Stainless Steel versions for durability and aesthetic preference.

Specifications

• Product Number: RA2040015100
• Brand: Andersen
• Weight: 17 kg
• Voltage: 12V
• Gear Ratio 1st Speed: 1.3 : 1
• Gear Ratio 2nd Speed: 6.0 : 1
• Power Ratio 1st Speed: 8.5 : 1
• Power Ratio 2nd Speed: 39.5 : 1
• Manual Speeds: 2

Monohull Boat Size Compatibility

• Genoa Halyard Monohull Boat Size: 11.0-11.9 m (36-39 ft), 12.2-13.1 m (40-43 ft)
• Genoa Sheet Monohull Boat Size: 8.8-9.8 m (29-32 ft), 10.1-10.7 m (33-35 ft)
• Main Halyard Monohull Boat Size: 11.0-11.9 m (36-39 ft), 12.2-13.1 m (40-43 ft), 13.4-14.6 m (44-48 ft)
• Main Sheet Monohull Boat Size: 12.2-13.1 m (40-43 ft)
• Reef Line Monohull Boat Size: 13.4-14.6 m (44-48 ft), 14.9-16.5 m (49-54 ft)
• Spinnaker Halyard Monohull Boat Size: 12.2-13.1 m (40-43 ft)
• Spinnaker Sheet Monohull Boat Size: 11.0-11.9 m (36-39 ft), 12.2-13.1 m (40-43 ft)

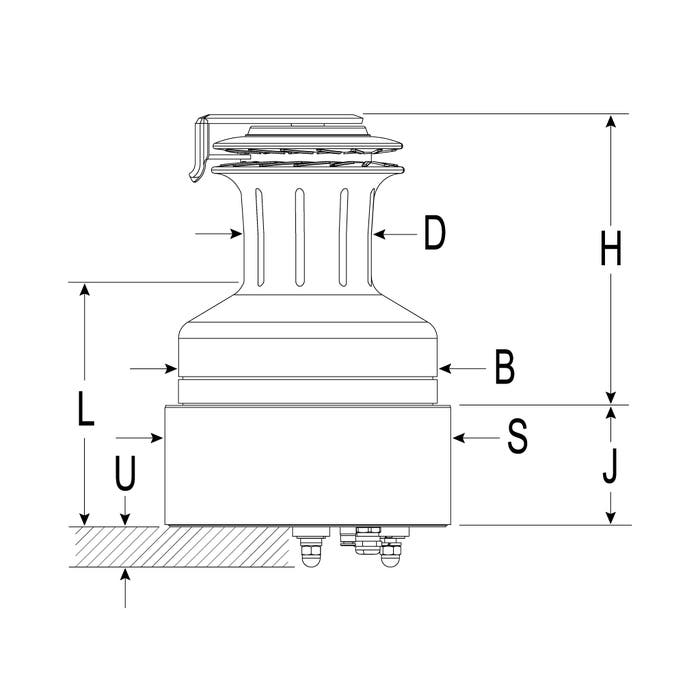

Winch Dimensions

• Base (B) Ø: 152 mm
• Drum (D) Ø: 75 mm
• Height (H): 174 mm
• Max Deck (K): 45 mm
• Line Entry (L): 156 mm

Additional Notes

• Each Compact Motor™ Above Deck winch is supplied with 1 set of 41mm (1 5/8”) terminal extensions.
• Additional 877800 terminal extension kits are available to order for longer “U” dimensions.
