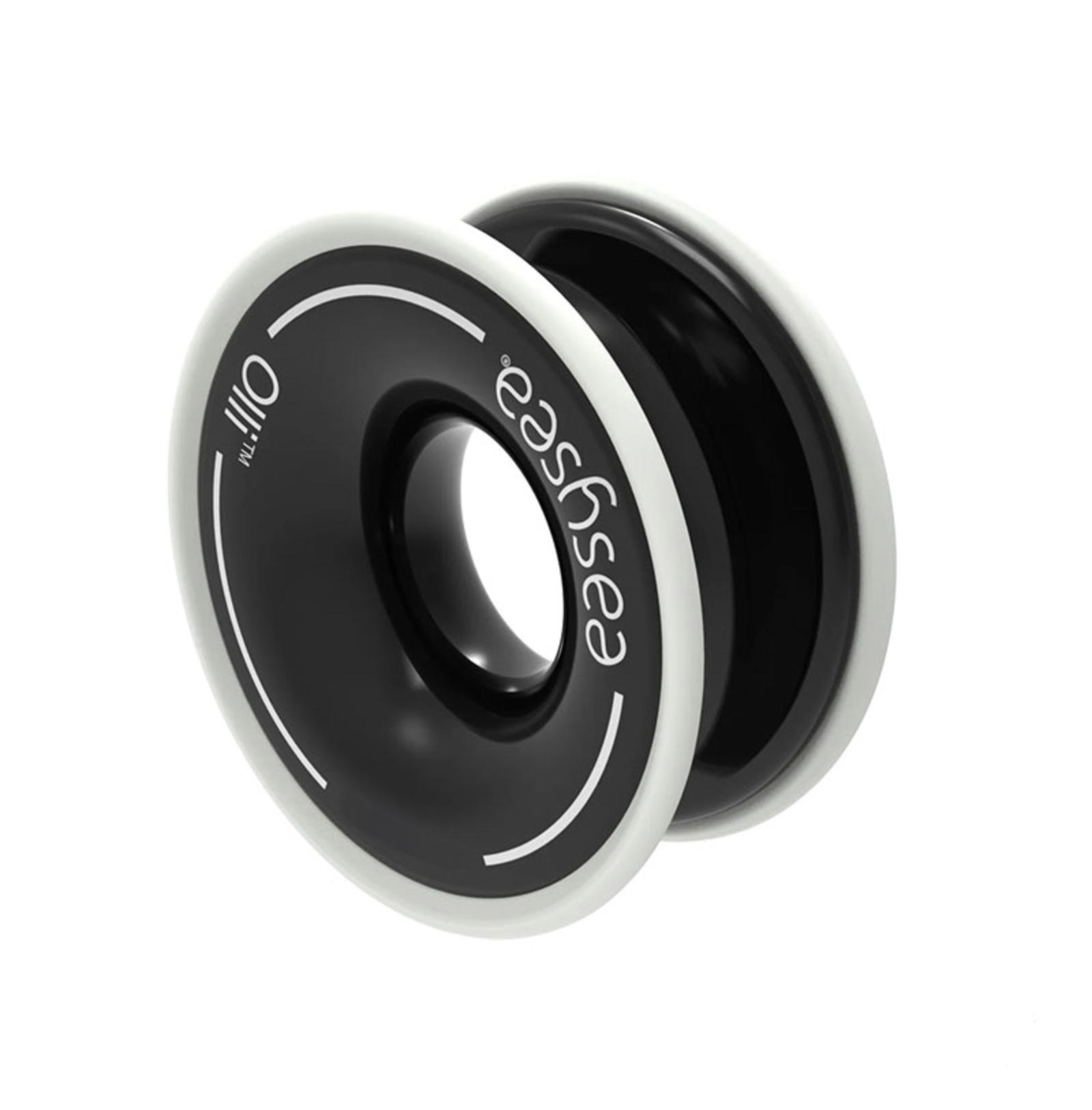

Easysea Olli S Anti-Shock Low Friction Ring 14x10
The EASYSEA Olli S is the pioneering anti-shock low friction ring featuring double protection to shield boat decks, hatches, and portholes from damage caused by bumps and scratches. It also effectively reduces annoying noises caused by wind and wave vibrations. This product was recognized with a Deck Equipment DAME Design Award nomination for its design and function. Made in Italy from solid aluminum 6082 and CNC machined, it combines superior finish quality with technical robustness. Its black anodized surface provides excellent anti-corrosion protection, ensuring full resistance to marine weathering. Available in various sizes.
- Material: Aluminum 6082
- Surface treatment: Black anodized
- Protection: EPDM rubber
- Suitable for line diameter: 10 mm
- Internal diameter: 14 mm
- Thickness: 17.60 mm
- External diameter: 38.50 mm
- Weight: 13 grams
- Maximum workload: 1600 kg
- Breaking strength: 3600 kg
- Order number: 00620011
- Supplier code: OA-102
How to determine the right Olli:
To calculate the required breaking force, use the formula:
Sail area (m²) × wind speed² (knots) × 0.021 = Working load (daN*)
Working load × 5 = Breaking load
*1 daN = 1.01971621 kgQuick formulas for required breaking strength of halyard or mainsheet:
- Genoa area × 80
- Main sail area × 100
- Spinnaker area × 30 -
