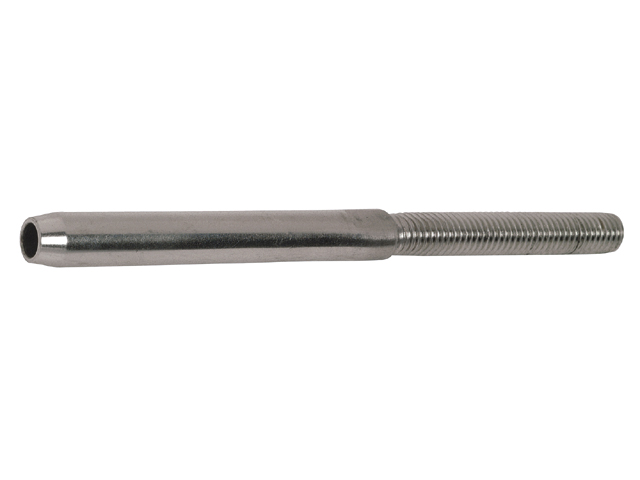

Stud Terminals for Rigging Screw M Right-Hand Thread SS AISI 316

€ 2,80

1-2 weeks delivery time
Price incl. 19% VAT

Diameter, mm:

2,5 mm - M5
2,5 mm - M6
3,0 mm - M6
4,0 mm - M6
4,0 mm - M8
5,0 mm - M8
5,0 mm - M10
6,0 mm - M10
6,0 mm - M12
7,0 mm - M10
7,0 mm - M12

These high-quality stud terminals are designed for use with rigging screws, featuring a right-hand M thread. Made from durable stainless steel AISI 316, they offer excellent corrosion resistance, making them suitable for marine and industrial applications. Available in multiple diameters and thread sizes, including M5, M6, M8, M10, and M12, these stud terminals provide a reliable solution for secure rigging connections.

Description
Ask a Question

Stud Terminals For Rigging Screw M Right-Hand Thread SS AISI 316

These stud terminals for rigging screws are crafted from high-quality stainless steel AISI 316, ensuring exceptional strength and corrosion resistance, particularly in marine and industrial environments. The terminals feature a right-hand thread, making them easy to install and secure. Available in a variety of diameters and thread sizes, including M5, M6, M8, M10, and M12, these terminals are ideal for different types of rigging systems.

The diameters and corresponding thread sizes are as follows:

2.5 mm diameter – available in M5 and M6 thread sizes
3.0 mm diameter – available in M6 thread size
4.0 mm diameter – available in M6, M8, and M10 thread sizes
5.0 mm diameter – available in M8 and M10 thread sizes
6.0 mm diameter – available in M10 and M12 thread sizes
7.0 mm diameter – available in M10 and M12 thread sizes

These terminals are commonly used in rigging applications for securing cables, ropes, and other components in both marine and industrial settings. The AISI 316 stainless steel ensures long-lasting performance, even in harsh, corrosive environments.

Ø mm Cable	L mm	Thread	B mm	C mm
2.5	70	M5	24	38
2.5	72	M6	24	40
3.0	80	M6	32	40
4.0	95	M6	40	44
4.0	102	M8	40	52
5.0	120	M8	57	52
5.0	130	M10	57	63
6.0	136	M10	63	63
7.0	148	M10	70	68
7.0	160	M12	70	79

These stud terminals are designed to provide a secure and durable connection, ensuring long-term performance in demanding applications. The right-hand thread is standard, offering ease of installation and a reliable fit in a variety of systems.
