The Calypso CMI1016d NMEA Connect PLUS HighEnd is a versatile data interface module connecting ultrasonic anemometers to NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth networks, supporting multi-user access and acting as a Bluetooth repeater and range extender with waterproof IP67 protection.
- Description
- Ask a Question
-

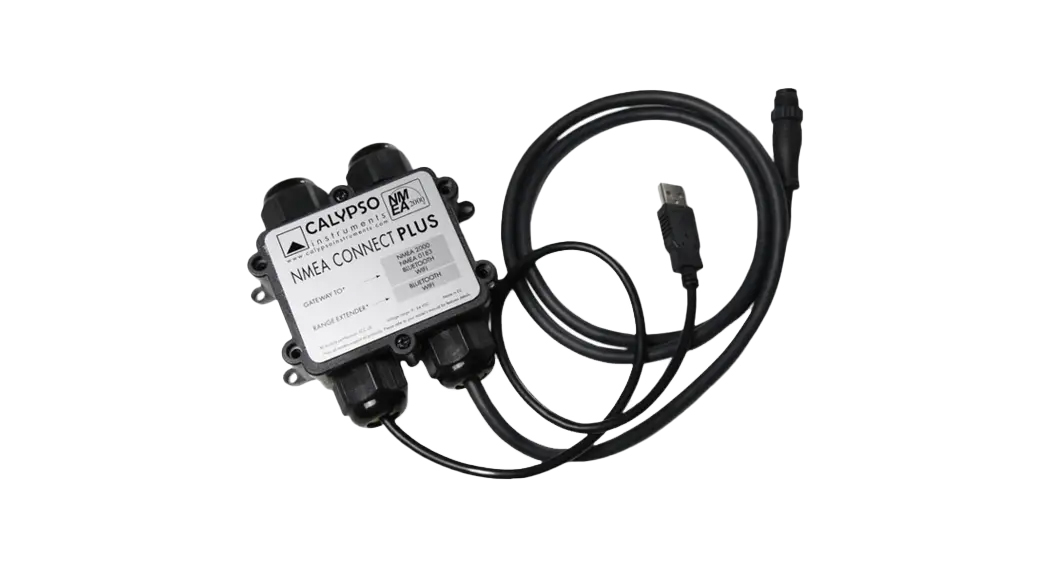

Calypso CMI1016d - NMEA Connect PLUS HighEnd
The Calypso NMEA Connect PLUS HighEnd is a versatile data interface module, enabling seamless connection between Calypso ultrasonic anemometers and various networks and devices. It connects to NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth, supporting simultaneous multi-user access to wind data. The system detects NMEA0183 wind phrases on startup and translates them across all output interfaces. If no wired input is found, it connects via Bluetooth. Additional functions include use as a Bluetooth repeater and range extender.
- Order number: 00361145
- Supplier code: CMI1016d
- Dimensions (L×W×H): 93.3×112.5×35.3 mm
- Range: Bluetooth - 50 m, WiFi - 100 m
- Data input: Bluetooth, NMEA0183
- Data output: Bluetooth, NMEA0183, NMEA2000, WiFi
- Waterproof IP class: IP67
- Voltage: 9 - 24 Volts
- Bluetooth version: 4.2
- Data speed: 4800/38400 baud
- Power consumption: 150 mA
- Software upgrade: Via PC
- Product weight: 100 g
- Cable length: 30 cm
-
