€ 41,03
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Stainless Swivel Shackle with 7.9mm Pins features a slotted head pin and stainless steel ball bearings for smooth operation. It has a point load breaking load of 2100kg and a uniformly distributed load breaking load of 2300kg. This shackle is also made from Grade 316 stainless steel and is available under product number RF75 from Ronstan.
- Description
- Ask a Question
-

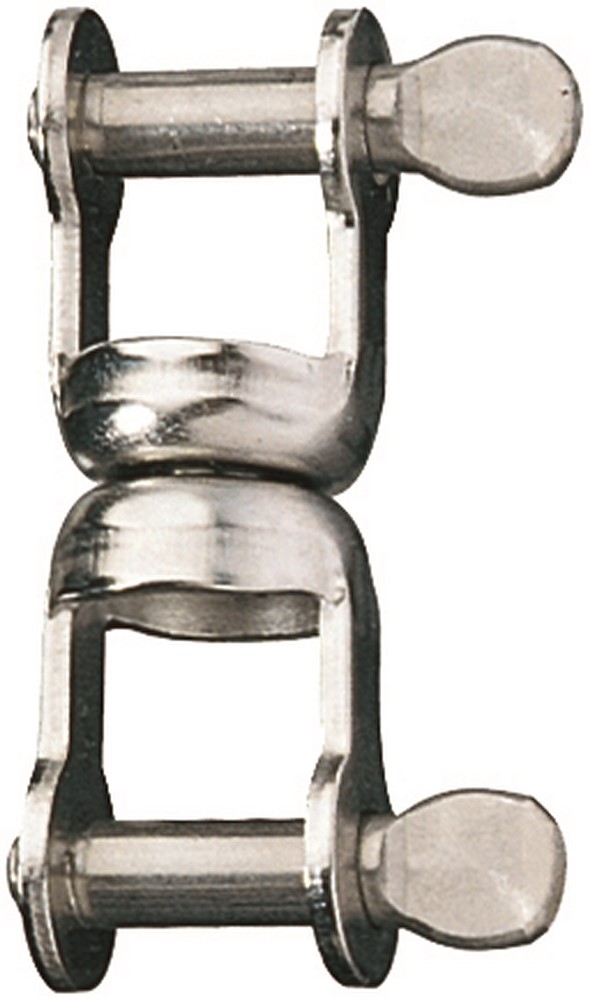

Stainless Swivel Shackle, 7.9mm (5/16") Pins
This Stainless Swivel Shackle features a slotted head pin and is equipped with stainless steel ball bearings, ensuring smooth operation under load. It is made from Grade 316 stainless steel, offering excellent resistance to corrosion and wear. This shackle is perfect for heavy-duty applications that require reliable performance and longevity.
- Weight: 80g
- Point Load Breaking Load (P.L. B.L.): 2100kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 2300kg
- Shackle Pin Product No.: RF75
- Dimensions:
- A: 7.9mm
- B: 17mm
- C: 60mm
- D: 15.8mm
- Material: Grade 316 stainless steel bodies, pins, and stainless steel ball bearing race
- Notes:
- UDL B.L. refers to the "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.
- P.L. B.L. refers to the "Point Load" breaking load of the shackle, where the load is applied only at the center or one side of the shackle pin.
- Product Number: RF75
- Brand: Ronstan
-
