Ronstan RF74100 Series 75 Core Block, Single

SKU: MM 051150

€ 137,21

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 75 Core Block™, Single, features a universal head that can be locked at 0 or 90 degrees or left to swivel. It delivers outstanding dynamic and static load capacity with less friction than competing models. This block is perfect for a wide range of applications, including use with wire and rope sheaves, and includes a hub hole for becket take-offs.

Description
Ask a Question

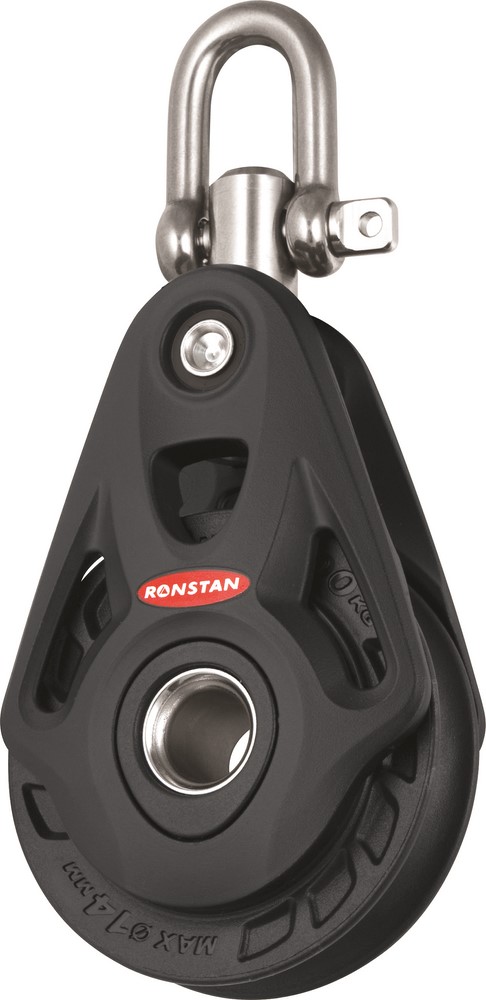

Series 75 Core Block™, Single

This versatile block has a universal head that can be locked at 0 or 90 degrees, or left free to swivel, offering flexibility in use.
- Features:
  - Class-leading performance with a sleek, modern design.
  - Excellent dynamic and static load capabilities.
  - Less than half the friction of competing models.
  - Universal head with full 3-axis articulation.
  - Head posts can be locked at 0 or 90 degrees using a 2.5mm Hex Key.
  - Available alloy rope/wire sheave version.
  - Central hub hole allows for a becket take-off or tie-up point with a max line diameter of 13.5mm.
- Materials:
  - Sheave: U.V. stabilised acetal or anodised aluminium (AW models).
  - Cheek plates: Aluminium alloy.
  - Ball Bearings: High compression strength carbon black acetal.
  - Shackle, post & hub: Grade 316 stainless steel.
- Product Specifications:
  - Type of Block: Single.
  - B.L. (kg): 3000.
  - M.W.L. (kg): 1500.
  - Max. Rope Diameter (mm): 14.
  - Weight (g): 354.
  - Pin Ø (mm): 8.
Product number: RF74100 | Brand: Ronstan
