SKU:
MM 051295
€ 264,39
1-2 weeks delivery time
-
+
The Series 300 Triggersnap™ Shackle with Large Bail offers a robust design with a high strength-to-weight ratio, constructed from Grade 316 stainless steel rivets and springs. Its heat-treated grade 15-5PH investment cast components provide exceptional strength and resistance to corrosion. This model is also proof-load tested and features an aluminum spike for convenient release while under load.
- Description
- Ask a Question
-

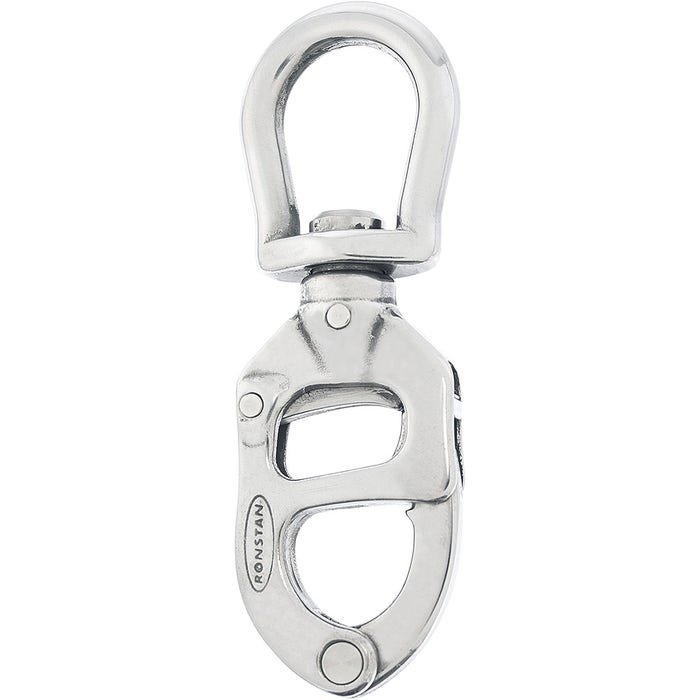

Series 300 Triggersnap™ Shackle with Large Bail
This stainless steel trigger release snap shackle offers a high strength-to-weight ratio and includes a large swivel bail.
- Constructed from Grade 316 stainless steel rivets and springs.
- Heat treated grade 15-5PH investment cast stainless steel body, bail, latch, and trigger.
- High strength-to-weight ratio.
- Individually proof-load tested.
- Stamped with a production code for traceability.
- Resistant to corrosion due to heat treatment.
- Available with small and large bail options.
- Includes an aluminum spike for easy release under load.

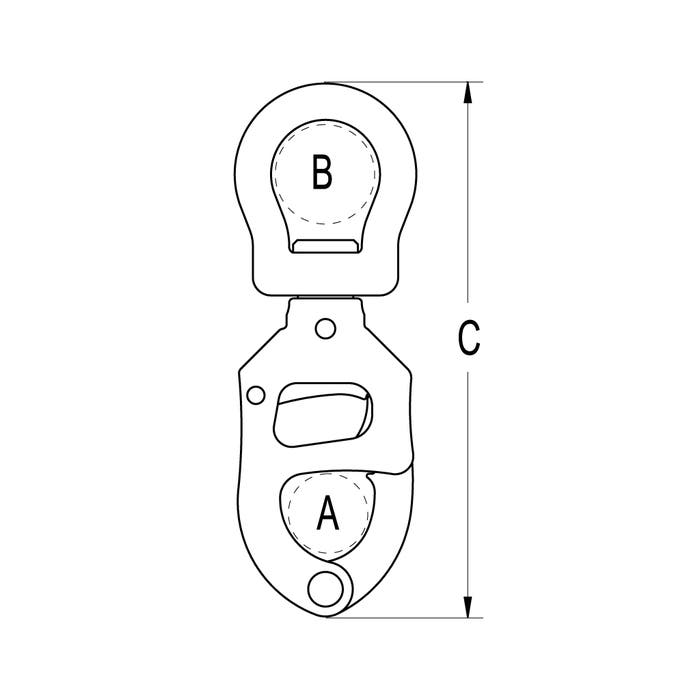

Specifications:
- A (mm): 19
- B (mm): 25
- C (mm): 123
- B.L. (kg): 4800
- M.W.L. (kg): 2400
- Weight (g): 194
Product number: RF7320
Brand: Ronstan
-
