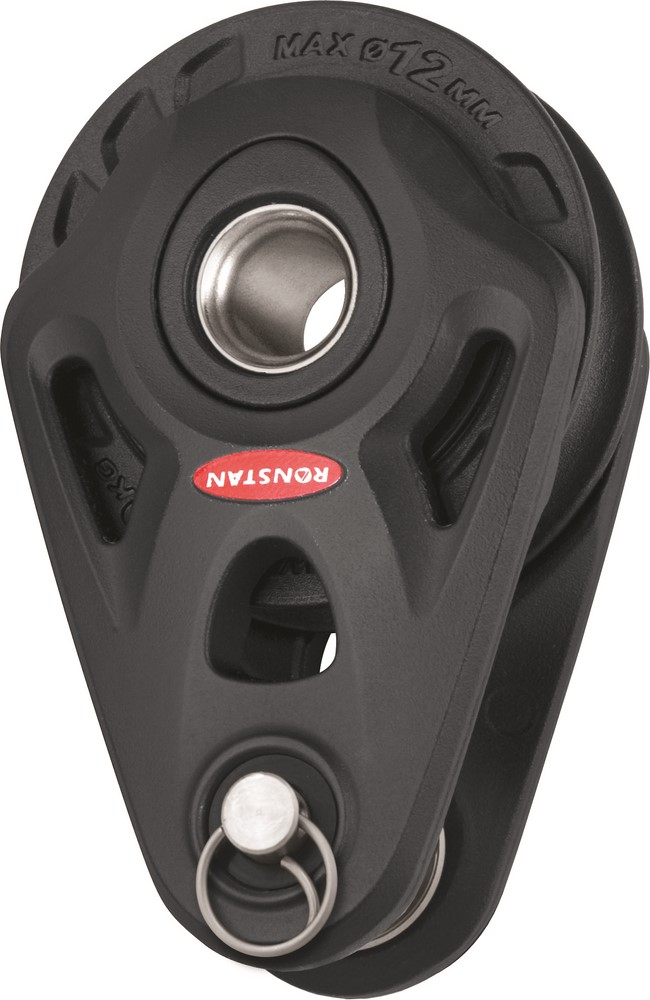

Ronstan RF64108A Series 60 Core Block, Mast Base with 8mm Clevis Pin

SKU: MM 051137

€ 84,64

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 60 Core Block™ Mast Base with an 8mm clevis pin is designed for mast attachment, providing excellent load performance with minimal friction. It is suitable for attachment to a 14mm wide mast collar post and offers a breaking load of 2000 kg and a maximum working load of 1000 kg.

Description
Ask a Question

Series 60 Core Block™, Mast Base with 8mm Clevis Pin

Designed for mast attachment, this block provides excellent load performance and minimal friction.
- Features:
  - Exceptional dynamic and static load performance.
  - Friction less than half of the nearest competitor.
  - Suitable for attachment to a 14mm (9/16”) wide mast collar post.
  - Removable 8mm (5/16”) clevis pin at the head.
  - Central hub hole can serve as a becket take-off or tie-up point.
  - Full block rated load can only be achieved with a uniformly distributed load across the full length of the clevis pin.
- Materials:
  - Sheaves: U.V. stabilised Acetal.
  - Cheek plates & cleat arms: Aluminium alloy.
  - Ball Bearings: High compression strength carbon black Acetal.
  - Shackle, post & hub: Grade 316 stainless steel.
  - Padeye & snap shackle: Grade 15-5PH stainless steel.
  - Cleat: Fibre reinforced composite.
  - Pin: 2205 stainless steel.
- Product Specifications:
  - Type of Block: Single
  - B.L. (kg): 2000
  - M.W.L. (kg): 1000
  - Max. Rope diameter (mm): 12
  - Weight (g): 182
  - Pin Ø (mm): 8
- Product number: RF64108A
- Brand: Ronstan
