Ronstan RF64103 Series 60 Core Block, Snap Shackle Attachment

SKU: MM 051143

€ 202,56

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 60 Core Block™, Snap Shackle Attachment features a snap shackle head that allows for quick attachment and removal, offering full swivel rotation and trunnion articulation. This design makes it ideal for utility or emergency block applications, with a central hub hole that can serve as a becket take-off or tie-up point. Constructed with UV-stabilised Acetal and stainless steel, this block provides excellent performance with minimal friction, suitable for boats up to 12 meters.

Description
Ask a Question

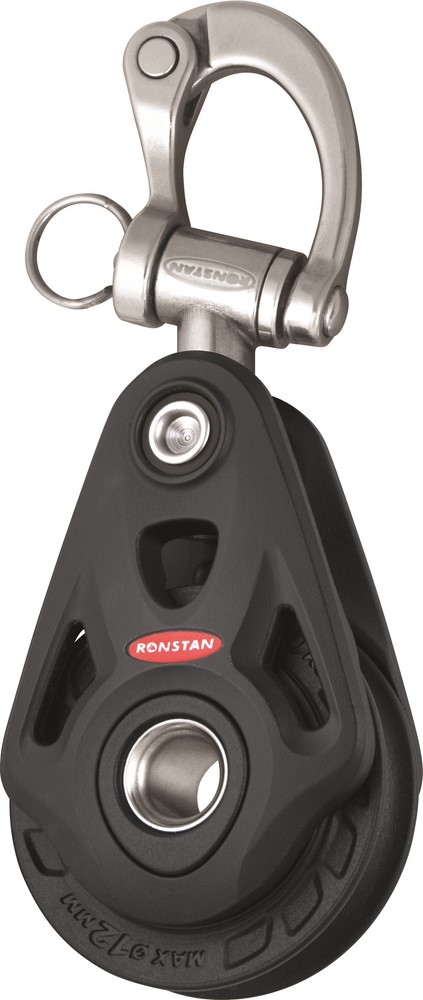

Series 60 Core Block™, Snap Shackle Attachment

The Snap Shackle Attachment features a snap shackle head that provides quick and easy attachment and removal, offering full swivel rotation and trunnion articulation.
- Class-leading performance with modern, sleek styling.
- Excellent dynamic and high static load performance.
- Offers less than half the friction of its nearest competitor.
- Trunnion snap shackle allows 360° rotation and side-to-side articulation.
- Perfect for utility or emergency block applications.
- Suitable for attachment to a toe rail.
- Ideal for a 2:1 halyard block with quick attachment and removal.
- Snap shackle internal clearance of 20mm (3/4").
- Central hub hole can serve as a becket take-off or tie-up point.
Materials
- Sheaves: UV-stabilized acetal.
- Cheek plates & cleat arms: Aluminium alloy.
- Ball Bearings: High compression strength carbon black acetal.
- Shackle, post & hub: Grade 316 stainless steel.
- Snap shackle: Grade 15-5PH stainless steel.
- Cleat: Fibre reinforced composite.
Product Specifications
- Type of Block: Single
- B.L. (kg): 2000
- M.W.L. (kg): 1000
- Max. Rope Diameter (mm): 12
- Weight (g): 285
- Product Number: RF64103
- Brand: Ronstan
