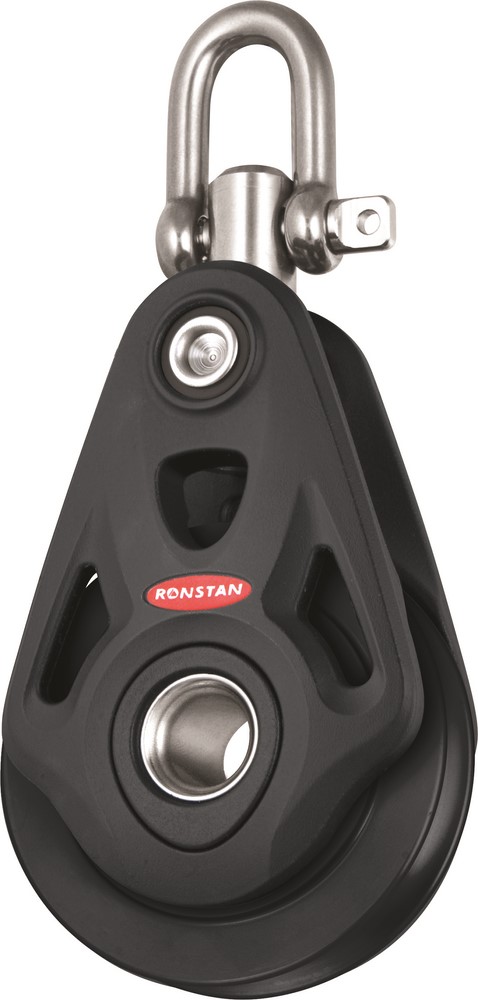

Ronstan RF64100AW Series 60 Core Block, Aluminium Sheave

SKU: MM 051142

€ 178,25

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 60 Core Block™, Aluminium Sheave is built for rope and wire applications, with a lockable shackle head that can articulate in three axes. This block offers excellent performance with less friction than its competitors. The durable alloy sheave and the versatile universal head make it a robust solution for various marine applications. It includes a central hub that allows for a becket take-off or tie-up point, and its materials, including UV-stabilised Acetal and stainless steel, ensure resilience under heavy loads.

Description
Ask a Question

Series 60 Core Block™, Aluminium Sheave

This block features an aluminium sheave suitable for both rope and wire, with full 3-axis articulation and a lockable shackle head.
- Features:
  - Class leading performance and sleek, contemporary styling.
  - Excellent dynamic and high static load performance.
  - Less than half the friction of the nearest competitor.
  - Durable alloy rope/wire sheave.
  - Universal head with full 3-axis articulation.
  - Shackle head lockable at 0 or 90 degrees.
  - Central hub can be used as a becket take-off or tie-up point, Max 11.5mm line.
- Materials:
  - Sheaves: U.V. stabilised Acetal.
  - Cheek plates & cleat arms: Aluminium alloy.
  - Ball Bearings: High compression strength carbon black Acetal.
  - Shackle, post & hub: Grade 316 stainless steel.
  - Padeye & snap shackle: Grade 15-5PH stainless steel.
  - Snap shackle: Grade 15-5PH investment cast stainless steel.
  - Cleat: Fibre reinforced composite.
- Specifications:
  - Type of Block: Single
  - B.L. (kg): 2000
  - M.W.L. (kg): 1000
  - Max. Rope diameter (mm): 12
  - Weight (g): 292
  - Pin Ø (mm): 6
  - Brand: Ronstan
  - Product number: RF64100AW
