The Stainless Steel Wide D Shackle with a 5/16" pin and coined head is designed for high load applications, with a point load breaking load of 1700kg and a uniformly distributed load breaking load of 3400kg. It weighs 70g and is constructed from Grade 316 stainless steel. The product number is RF639, and it is by Ronstan.
- Description
- Ask a Question
-

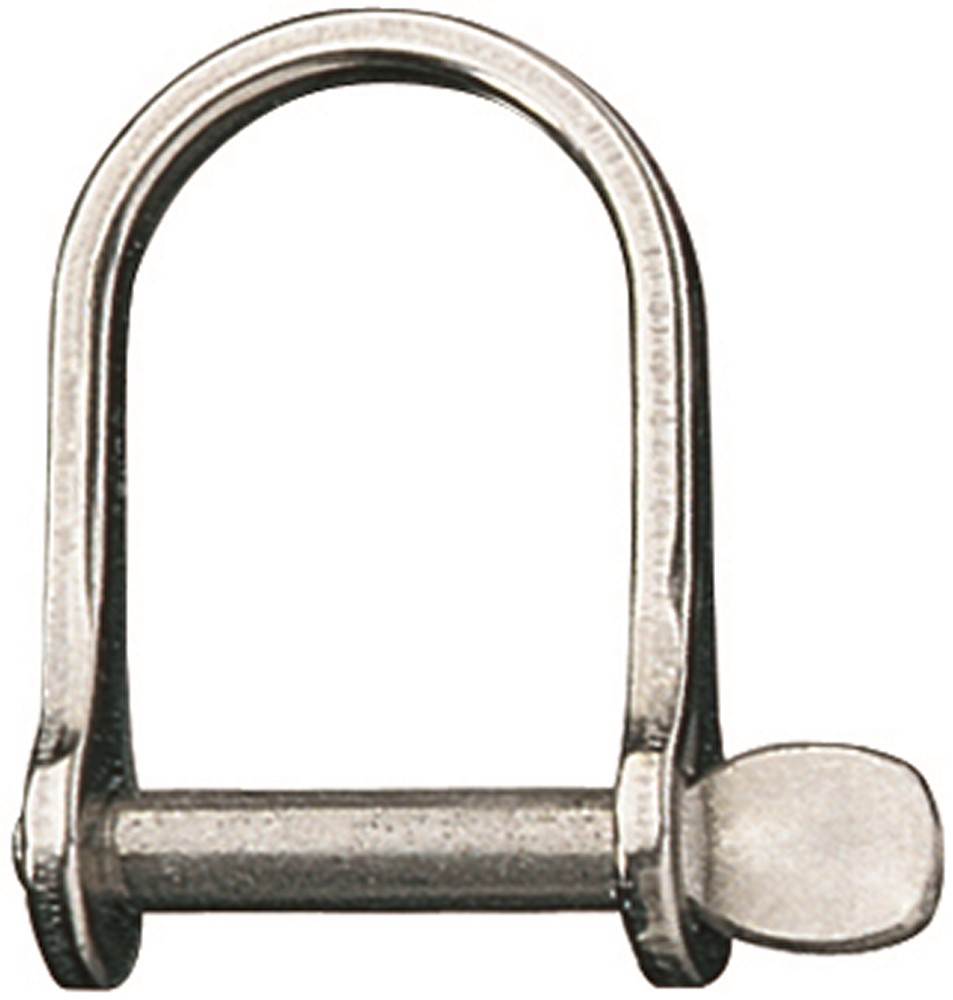

Stainless Steel Wide D Shackle, 5/16" Pin, Coined Head
This robust stainless steel shackle is designed for high load applications with exceptional durability.
- Features: High strength to weight ratio
- Specifications:
- Weight: 70g
- Point Load Breaking Load (PL BL): 1700kg
- Uniformly Distributed Load Breaking Load (UDL BL): 3400kg
- Shackle Pin Product Number: N/A
- Notes: UDL BL – The load is applied across the full span of the shackle pin. PL BL – The load is applied only at the center or one side of the shackle pin.
- Pin diameter: 5/16" (coined pin head)
- A (mm): 7.9
- B (mm): 51
- C (mm): 28
- Materials: Grade 316 stainless steel bodies and pins
Product Number: RF639
Brand: Ronstan
-
