This 1/2" pin Stainless Steel Long D Shackle with a coined head and hole offers superior strength for high-load applications. It features a point load breaking load of 7500kg and a uniformly distributed load breaking load of 7700kg, crafted from Grade 316 stainless steel. The product number is RF626.
- Description
- Ask a Question
-

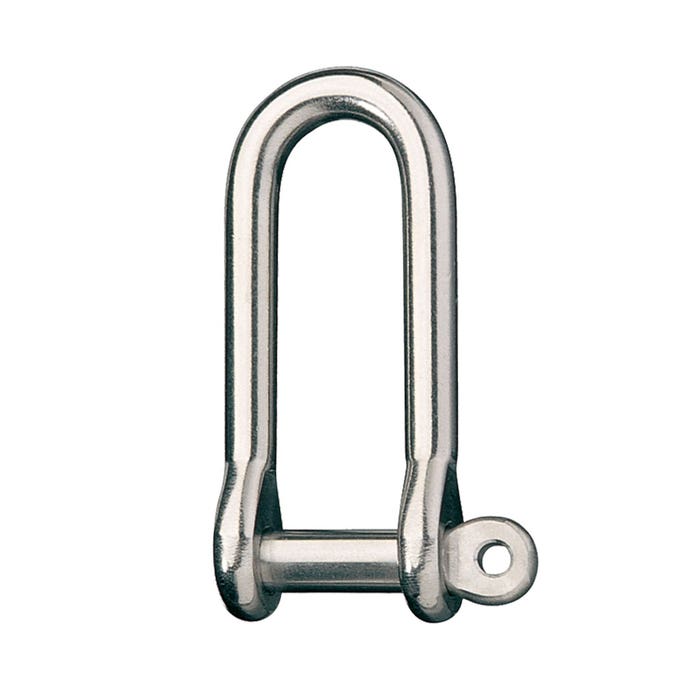

Stainless Steel Long D Shackle, 1/2" Pin, Coined Head with Hole
This stainless steel long D shackle offers superior strength and is perfect for high-load applications. It is designed with a high strength-to-weight ratio for maximum durability.
- Features: High strength to weight ratio, Premium quality, rated
- Product Specifications:
- Weight: 155g
- P.L. B.L. (Point Load Breaking Load): 7500 kg
- U.D.L. B.L. (Uniformly Distributed Load Breaking Load): 7700 kg
- Shackle Pin Product No.: RF36
- Notes: UDL BL – The load is applied across the full span of the shackle pin. PL BL – The load is applied only at the center or one side of the shackle pin. Shackle pins drilled for seizing wire.

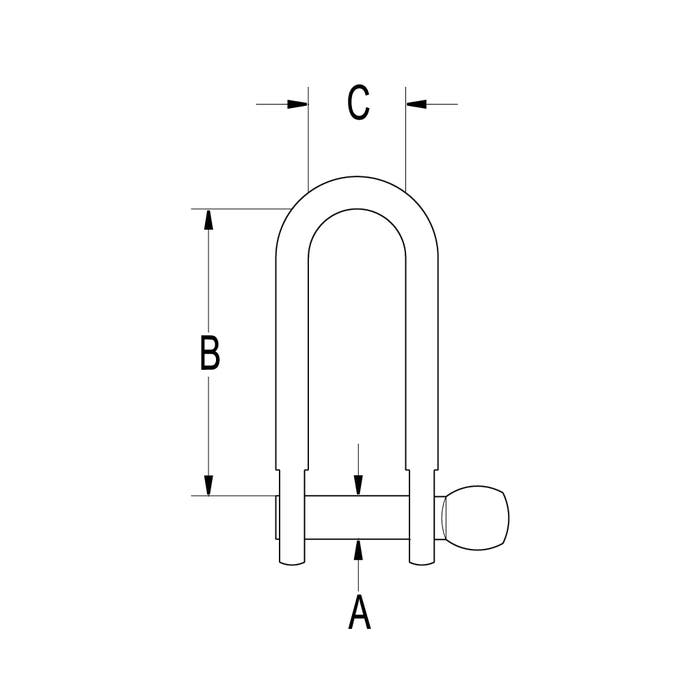

- A (mm): 12.7
- B (mm): 72
- C (mm): 18
- Materials: Grade 316 stainless steel bodies and pins
- Product number: RF626
- Brand: Ronstan
-
