Crafted for heavy-duty use, this Stainless Steel Long D Shackle with a 3/8" pin and coined head has a point load breaking load of 3600kg and a uniformly distributed load breaking load of 5400kg. Made from Grade 316 stainless steel, the product number is RF625, suitable for industrial and marine applications requiring high strength.
- Description
- Ask a Question
-

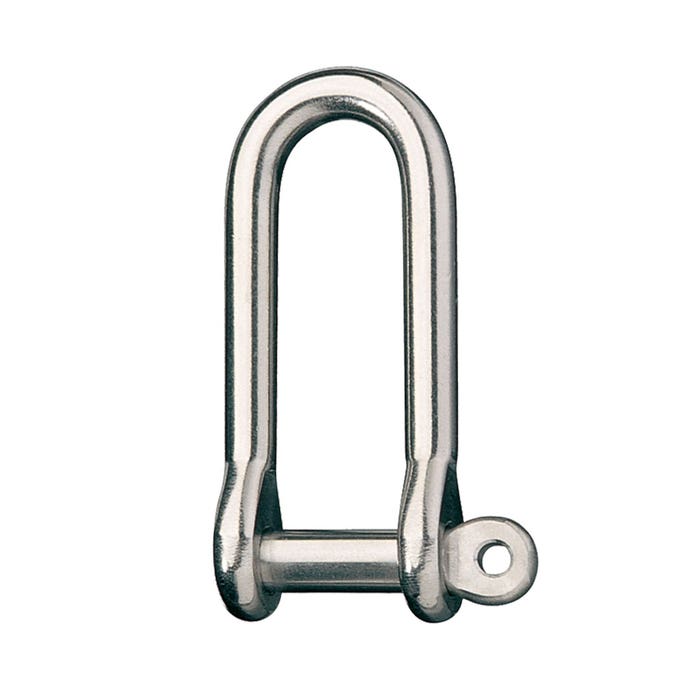

Stainless Steel Long D Shackle, 3/8" Pin, Coined Head with Hole
Strong and durable, this stainless steel long D shackle is ideal for heavy-duty applications. It is crafted to offer both premium quality and a high strength-to-weight ratio.
- Features: High strength to weight ratio, Premium quality, rated
- Product Specifications:
- Weight: 90g
- P.L. B.L. (Point Load Breaking Load): 3600 kg
- U.D.L. B.L. (Uniformly Distributed Load Breaking Load): 5400 kg
- Shackle Pin Product No.: RF35
- Notes: UDL BL – The load is applied across the full span of the shackle pin. PL BL – The load is applied only at the center or one side of the shackle pin. Shackle pins drilled for seizing wire.

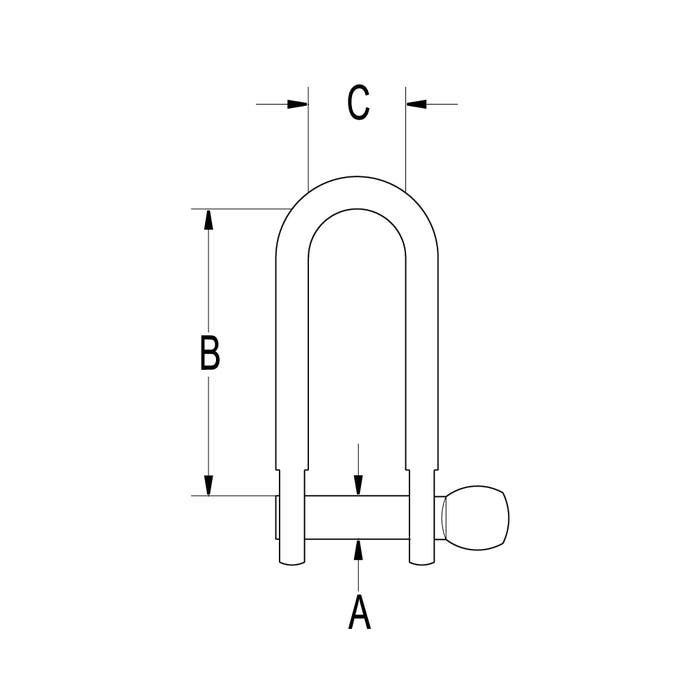

- A (mm): 9.5
- B (mm): 60
- C (mm): 17
- Materials: Grade 316 stainless steel bodies and pins
- Product number: RF625
- Brand: Ronstan
-
