€ 15,10
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
Stainless Steel D Shackle, 5/16" Pin, Coined Head: Featuring a 5/16" diameter pin and a coined pin head, this stainless steel D shackle offers high strength and reliability for a wide range of applications requiring robust performance.
- Description
- Ask a Question
-

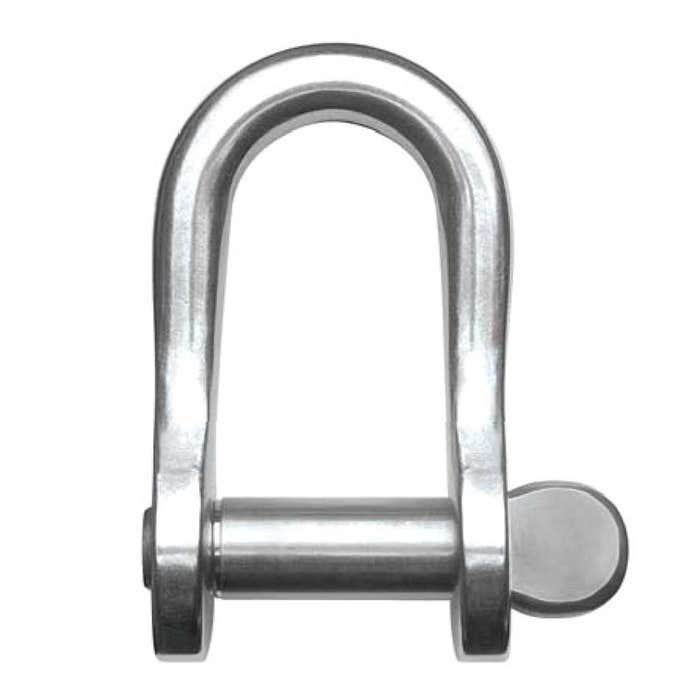

Stainless Steel D Shackle, 5/16" Pin, Coined Head
High-strength stainless steel D shackle designed with a 5/16" diameter pin and a coined pin head for durability.
- Weight: 50g
- Pin Diameter: 7.9mm
- Point Load Breaking Load (P.L. B.L.): 2700kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 3600kg
- Shackle Pin Product No.: RF34
- Notes: UDL BL represents the breaking load when the load is evenly distributed, while PL BL is the load applied at one point.
- Shackle Pin Size: 7.9mm (A), 29mm (B), 16mm (C)
Application: Suitable for a wide variety of applications due to its strength and design.
Materials: Constructed from Grade 316 stainless steel for both the shackle and the pin.
Product Number: RF618
Brand: Ronstan
-
