€ 20,52
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Swivel Shackle with 5/32" pins provides exceptional strength and reliability for demanding applications. Made from Grade 316 stainless steel, it ensures durability and is perfect for high-load conditions, with breaking loads of up to 500kg.
- Description
- Ask a Question
-

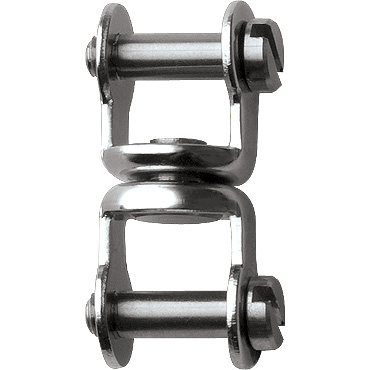

Swivel Shackle, 5/32" Pins
This Swivel Shackle with 5/32" pins offers exceptional strength and reliability. Crafted from Grade 316 stainless steel, it is designed to withstand demanding conditions.
- Product number: RF576
- Brand: Ronstan
- Pin Diameter: 5/32"
- Weight: 10g
- Point Load Breaking Load (P.L. B.L.): 350kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 500kg

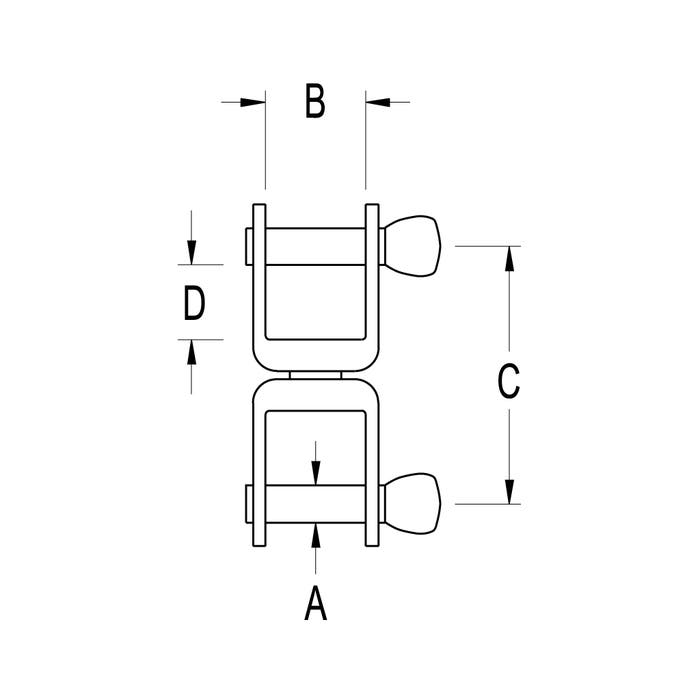

- Dimensions:
- A: 4mm
- B: 10mm
- C: 22mm
- D: 6mm
- Notes: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
-
