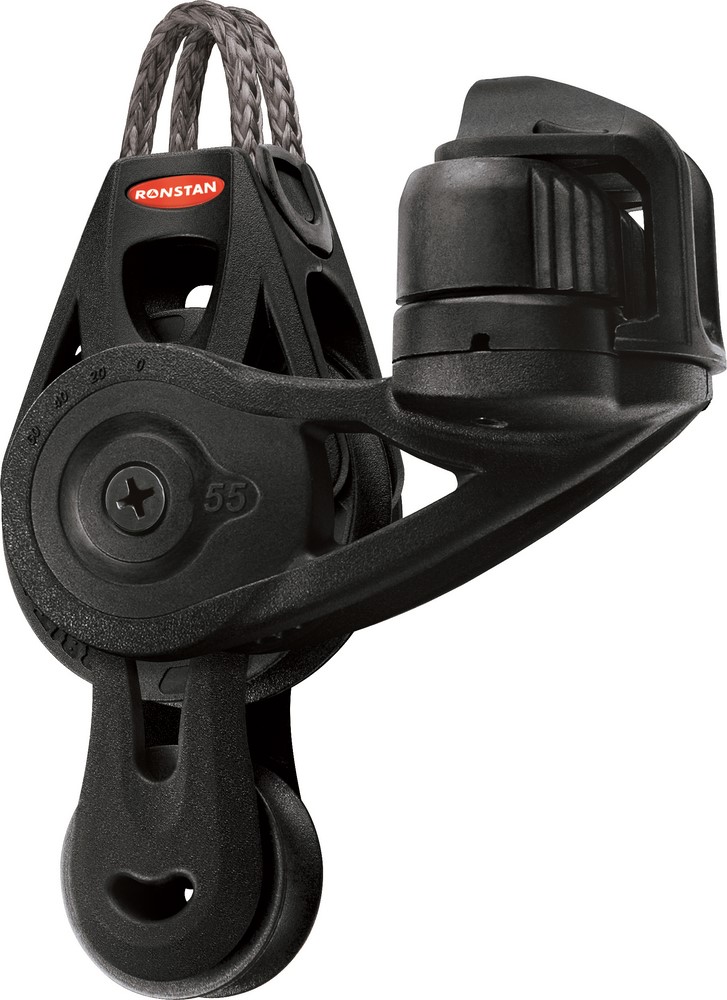

Ronstan RF55521 Series 55 Orbit Block, Fiddle with Cam Cleat and Link Head

SKU: MM 051060

€ 158,12

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 55 Orbit Block™ Fiddle with Cam Cleat and Link Head combines an adjustable cleat and Dyneema® Link Head for superior performance. Its lightweight construction and efficient bearing system make it an excellent choice for mainsheet systems on dinghies and sportsboats, providing high load capacity and smooth operation.

Description
Ask a Question

Series 55 Orbit Block™ Fiddle with Cam Cleat and Link Head

A fiddle block designed with an adjustable cleat and a Dyneema® Link Head for superior performance and ease of use.
- Ultra Lightweight
- Low friction 2-stage Orbital ball bearing system
- Highest working load in its class
- Low profile and compact
- High performance cleating
- Easily fitted and securely retained Dyneema® Link head
- Composite C-Cleat™ and fairlead
Applications:
- Mainsheet systems on dinghies, sportsboats, and small keelboats up to 9m (30ft)
- Halyard, Vang, and Backstay applications on boats up to 8m (26ft)
- Control line applications on larger yachts
Materials:
- Ball bearings: High compression strength acetal
- Stage 2 bearing: Carbon fibre reinforced, PTFE impregnated Nylon
- Frame/Cheeks: Toughened, glass fibre reinforced Nylon
- Rope Link: UV stabilised, multi-strand impregnated SK75 Dyneema®
Product Specifications:
- Type of Block: Fiddle
- B.L. (kg): 1000
- M.W.L. (kg): 500*
- Max. Rope diameter (mm): 10
- Weight (g): 231
- Notes: Small fiddle block sheave has a high load full contact bearing (i.e. not ball bearing). Main sheave has 2-stage, ball bearing. Line load through cleat not to exceed 175kg (385lb). Replacement Link: RF9004-08. Replacement Retainer Clip: RF5001
Product number: RF55521

Brand: Ronstan
