SKU:
MM 050546
€ 53,89
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Series 50 High Load Exit Box features a 50mm Nylatron® sheave and is ideal for both wire and rope applications. It has a breaking load of 1500kg and a working load of 750kg, making it suitable for high static load situations such as halyards. The sheave is made from self-lubricating Nylatron®, and the housing is made from Grade 316 stainless steel, minimizing friction and chafing.
- Description
- Ask a Question
-

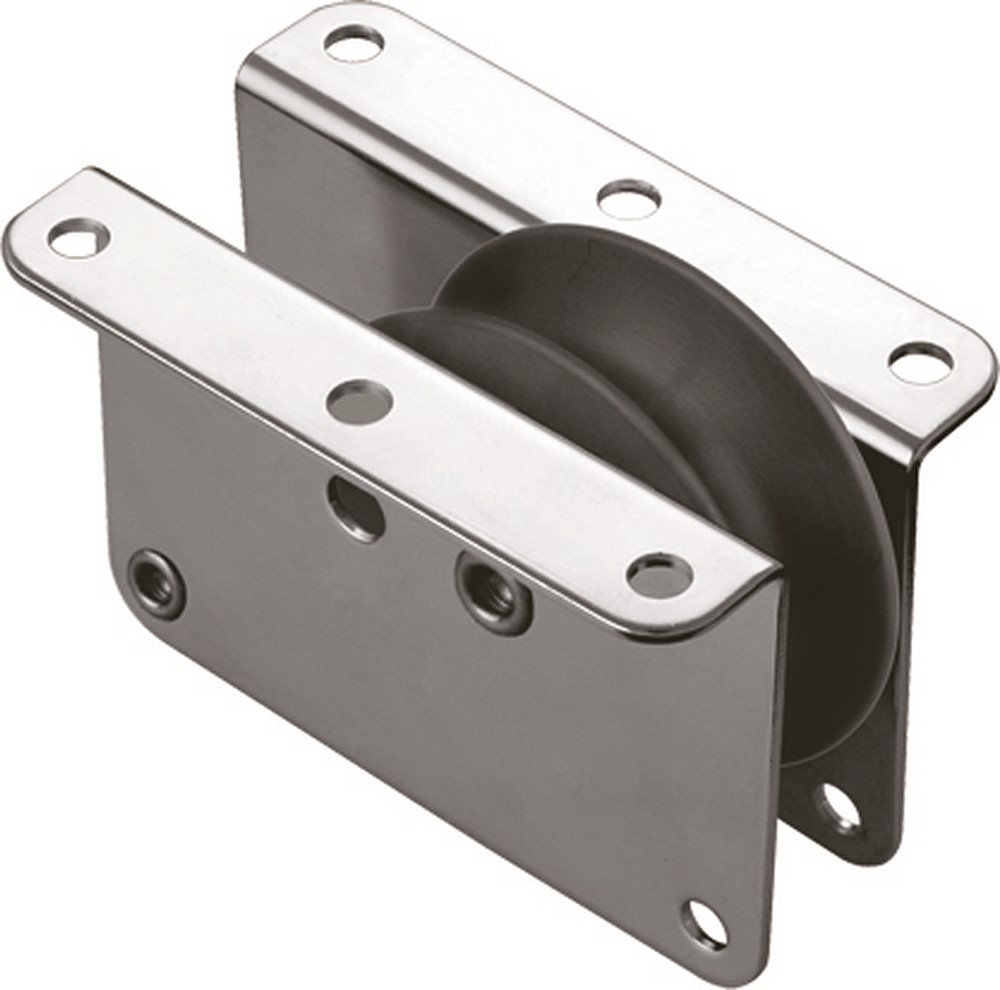

Series 50 High Load Exit Box
The Series 50 High Load Exit Box comes with a 50mm Nylatron® sheave, suitable for wire or rope, with an external mount. It also requires 6 x 5mm fasteners (3/16") for installation.
- Type of Block: Exit
- B.L. (kg): 1500
- M.W.L. (kg): 750
- Max. Rope Diameter (mm): 12
- Weight (g): 145
- Wire Ø (mm): 5
- Fastener Ø (mm): 6
- Product Number: RF51712
- Brand: Ronstan
Ronstan's sheave boxes, including the Series 50, are designed for applications where high static loads are common, such as halyards or other wire and rope uses.
- Applications: Perfect for situations where lines need to pass through decks, bulkheads, or spars, minimizing friction and chafing.
- Materials: Self-lubricating Nylatron® sheave, Grade 316 stainless steel housing.

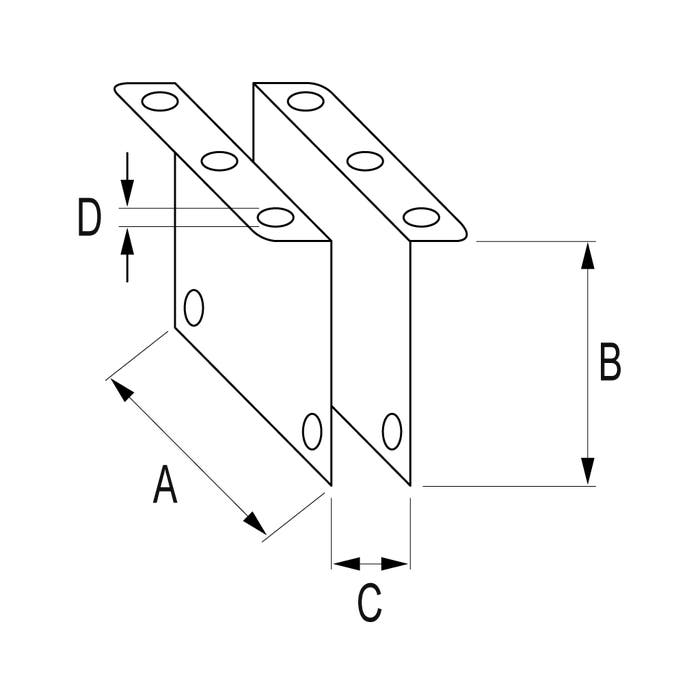

- Specification Details:
- A (mm): 62
- B (mm): 42
- C (mm): 21
- D (mm): 5
-
