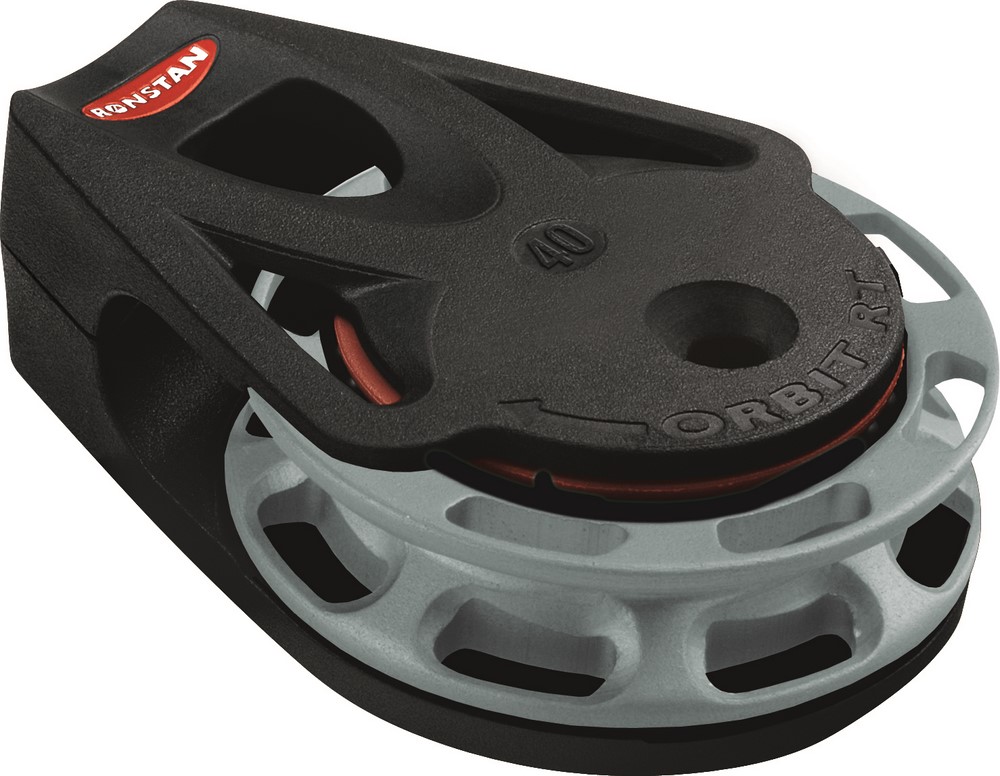

Ronstan RF46151 Series 40 Ball Bearing Orbit Block, Ratchet Cheek Block, Clockwise

SKU: MM 050863

€ 79,04

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 40 Ball Bearing Orbit Block™, Ratchet Cheek Block, Clockwise, provides smooth sheet easing with automatic ratchet engagement. Designed for clockwise rotation, it is perfect for dinghy mainsheet systems and sportsboats. The block features a low mounting point for maximum strength and is made from high-quality materials for reliability.

Description
Ask a Question

Series 40 Ball Bearing Orbit Block™, Ratchet Cheek Block, Clockwise

This ratchet cheek block provides smooth easing of sheets with automatic load sensing ratchet engagement. Its clockwise rotation ensures optimal performance for a variety of applications.
- Features:
  - Auto, clockwise rotation; requires 2x 4mm (5/32") fasteners
  - Up to 14:1 holding power, the highest available
  - Fully automatic, load sensing ratchet engagement
  - Recessed underside for curved mounting surfaces
  - Low mounting points for maximum strength
- Applications:
  - Dinghy mainsheet systems
  - Sportsboats and small keelboats mainsheet fine tune systems
  - Mainsheet systems on sportsboats with RF7 mainsheet swivel cleat unit
  - Spinnaker and jib sheets on dinghies, especially modern asymmetric classes
  - Control line applications on larger yachts
- Materials:
  - Sheave: Anodised Aluminium
  - Ball Bearings: High compression strength carbon black Acetal
  - Frame/Cheeks: Toughened, glass fibre reinforced Nylon
  - Rope Link: UV stabilised, multi-strand impregnated SK75 Dyneema®
- Specifications:
  - Type of Block: Ratchet, Cheek/Foot
  - Breaking Load (B.L.): 500 kg
  - Maximum Working Load (M.W.L.): 175 kg
  - Max Rope Diameter: 9 mm
  - Weight: 36 g
Product number: RF46151

Brand: Ronstan
