SKU:
MM 050545
€ 41,66
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Series 40 High Load Exit Box is designed with a 40mm Nylatron® sheave, perfect for both wire and rope. With a breaking load of 1000kg and a working load of 500kg, it’s suited for heavy-duty use in marine environments. It minimizes friction and chafing in applications where lines pass through decks, bulkheads, or spars. The sheave is made from Nylatron®, and the housing is made of Grade 316 stainless steel.
- Description
- Ask a Question
-

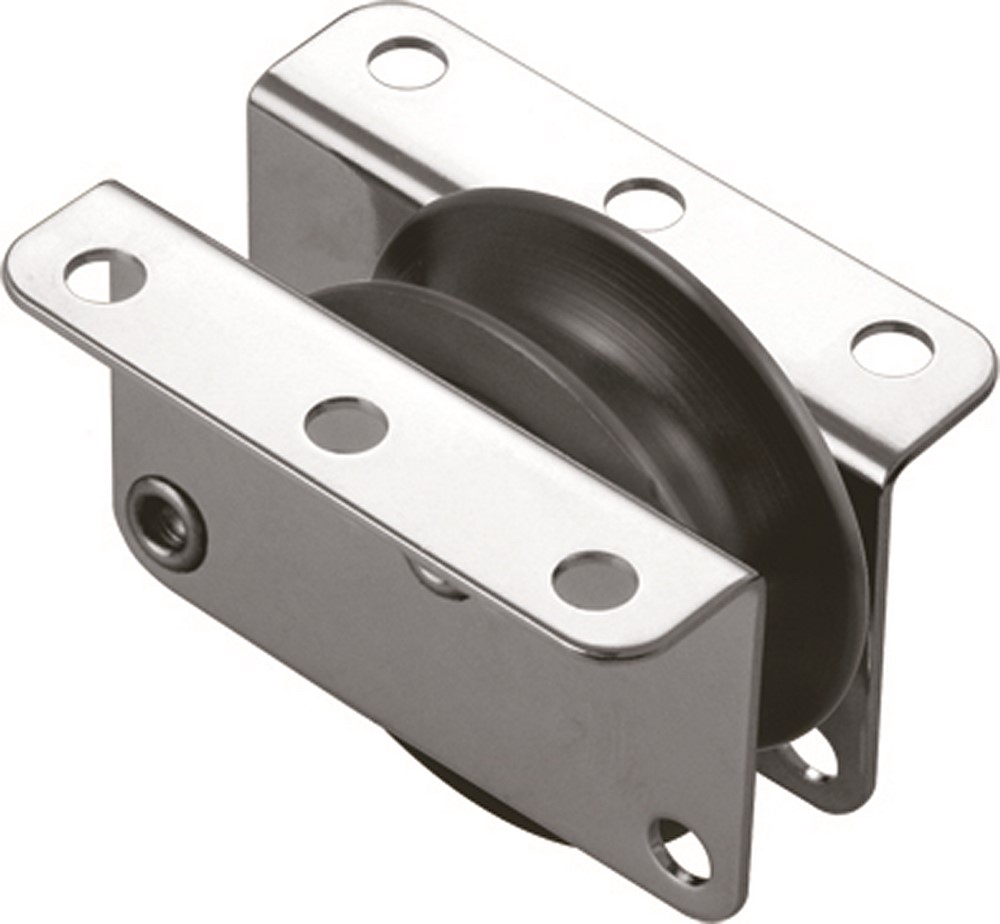

Series 40 High Load Exit Box
The Series 40 High Load Exit Box features a 40mm Nylatron® sheave, suitable for wire or rope, with an external mount. It is designed for heavy-duty use and requires 6 x 5mm (3/16") fasteners for installation.
- Type of Block: Exit
- B.L. (kg): 1000
- M.W.L. (kg): 500
- Max. Rope Diameter (mm): 10
- Weight (g): 75
- Wire Ø (mm): 5
- Fastener Ø (mm): 5
- P.L. B.L. (kg): 2700
- U.D.L. B.L. (kg): 3600
- Qty. Fasteners: 6
- Product Number: RF41712
- Brand: Ronstan
Ronstan manufactures a wide range of sheave boxes suitable for rope and wire. These plain bearing sheaves are perfect for high static load situations such as halyards.
- Applications: Ideal for applications where lines (rope or wire) need to be led through decks, bulkheads, or spars, minimizing friction and chafing.
- Materials: Nylatron® sheave, Grade 316 stainless steel housing.

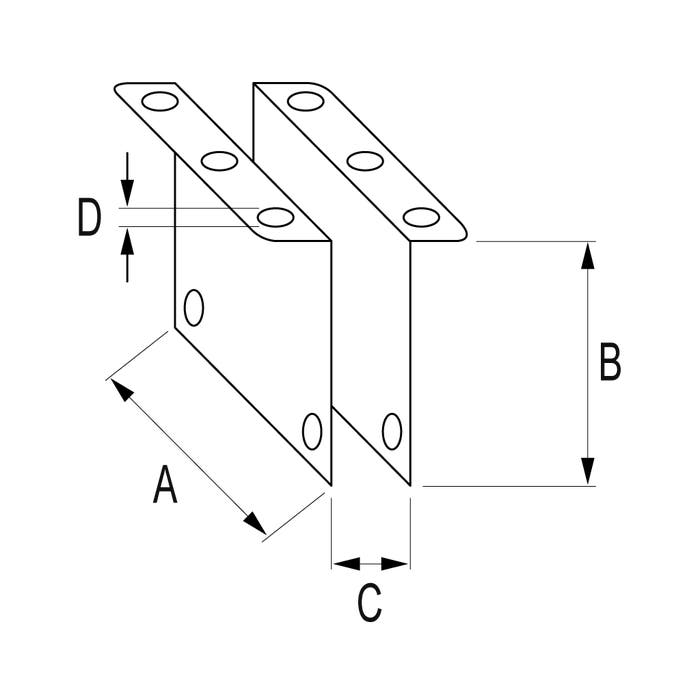

- Specification Details:
- A (mm): 54
- B (mm): 33
- C (mm): 17
- D (mm): 5
-
