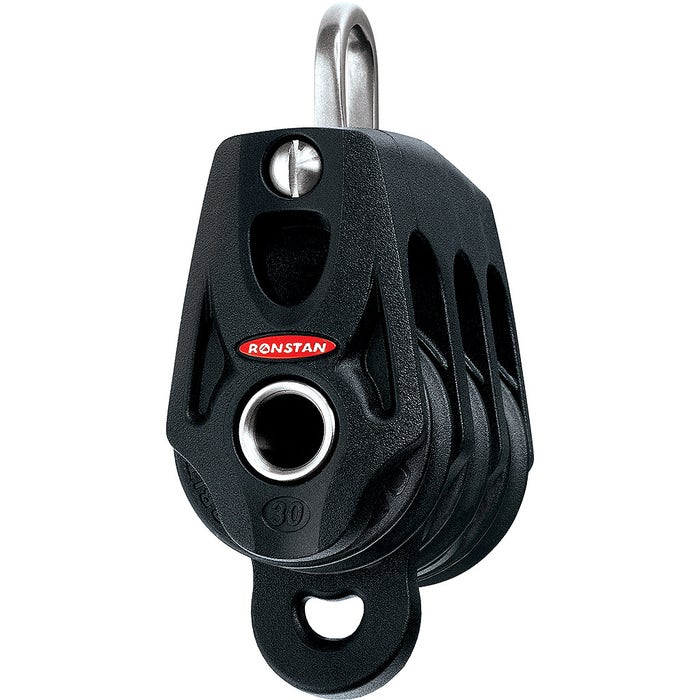

Ronstan RF35312 Series 30 Ball Bearing Orbit Block, Triple with Becket

SKU: MM 051036

€ 65,30

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 30 Ball Bearing Orbit Block™ Triple with Becket is a triple sheave block with a becket, designed for demanding marine environments. It provides high load capacity and smooth operation, with a versatile attachment system and low-friction ball bearing performance. Ideal for mainsheet systems, halyards, and control lines, the block is made from durable Acetal and reinforced Nylon, with specific guidelines for rope load distribution.

Description
Ask a Question

Series 30 Ball Bearing Orbit Block™, Triple with Becket

This triple sheave block features a becket and is designed for high performance and durability in demanding marine environments.
- Features:
  - Lightweight construction
  - Highest working load in its class
  - Secure and versatile attachment method
  - Ultra low profile thru-sheave becket
  - Low friction 2-stage ball bearing system for consistent performance across the full working load range
- Applications:
  - Mainsheet and spinnaker sheets on dinghies up to 5m (16ft)
  - Halyard, vang, and backstay systems on boats up to 5m (16ft)
  - Control line systems on larger yachts
- Materials:
  - Sheave: High compression strength carbon black Acetal
  - Ball Bearings: High compression strength Acetal
  - Frame/Cheeks: Toughened, glass fibre reinforced Nylon

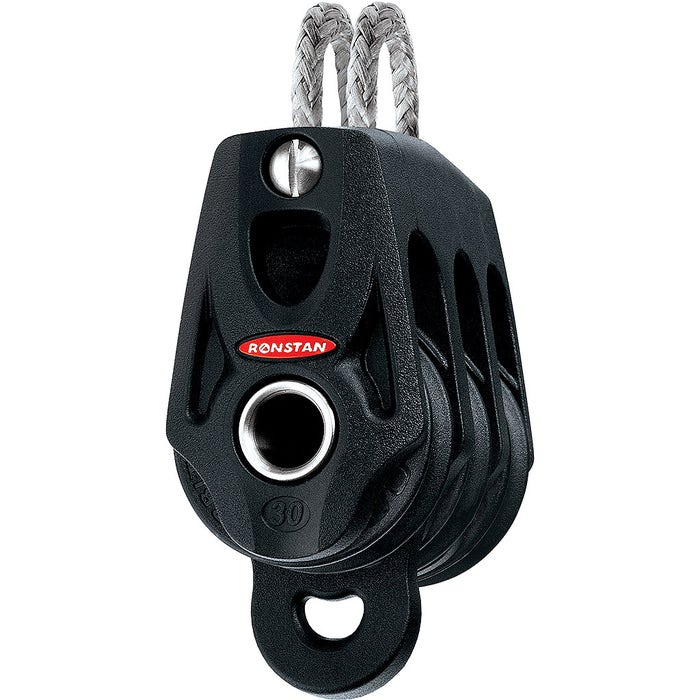

  - Link: UV-stabilised, multi-strand impregnated SK75 Dyneema®
- Product Specifications:
  - Type of Block: Triple
  - B.L. (kg): 1100
  - M.W.L. (kg): 550
  - Max. Rope Diameter (mm): 8
  - Weight (g): 79
  - Notes: Becket suits up to 6mm (1/4”) line. For lines above 6mm (1/4”), use an additional Dyneema® link (sold separately). Load on becket should not exceed 25% of block load. Suitable for 6:1 system at rated block load.
- Product Number: RF35312
- Brand: Ronstan
