The Wide D Shackle with a 1/4" pin offers excellent strength and durability for demanding applications. It weighs 26g and has a point load breaking load of 1100kg and a uniformly distributed load breaking load of 2300kg. It is made from Grade 316 stainless steel, and its product number is RF1853 by Ronstan.
- Description
- Ask a Question
-

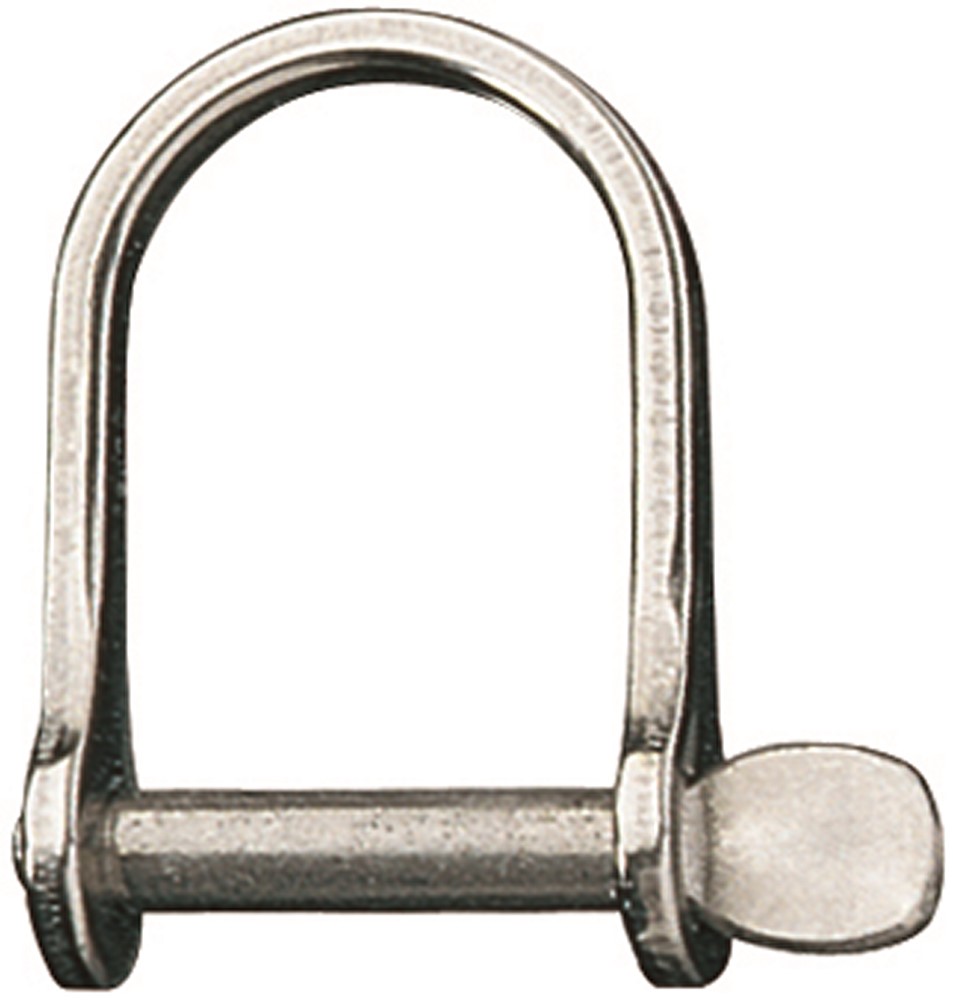

Wide D Shackle, 1/4" Pin
This high-strength shackle is designed for durability and performance in demanding environments.
- Features: High strength to weight ratio
- Specifications:
- Weight: 26g
- Point Load Breaking Load (PL BL): 1100kg
- Uniformly Distributed Load Breaking Load (UDL BL): 2300kg
- Shackle Pin Product Number: N/A
- Notes: UDL BL – The load is applied across the full span of the shackle pin. PL BL – The load is applied only at the center or one side of the shackle pin.
- Pin diameter: 1/4" (coined pin head)
- A (mm): 6.4
- B (mm): 39
- C (mm): 31
- Materials: Grade 316 stainless steel bodies and pins
Product Number: RF1853
Brand: Ronstan
-
