This Wide D Shackle features a 3/16" pin with a high strength-to-weight ratio, ensuring durability and reliability. With a point load breaking load of 700 kg and a uniformly distributed load breaking load of 1200 kg, it is crafted from Grade 316 stainless steel. Its product number is RF1852, and it is made by Ronstan.
- Description
- Ask a Question
-

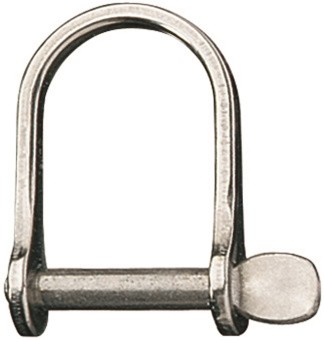

Wide D Shackle, 3/16" Pin
This shackle features a high strength-to-weight ratio, ensuring reliability and durability in various applications.
- Product Number: RF1852
- Brand: Ronstan
- Weight: 15g
- Point Load Breaking Load (P.L. B.L.): 700 kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 1200 kg
- Pin Diameter: 3/16" with a coined pin head
- Material: Grade 316 stainless steel bodies and pins
- Dimensions:
- A: 4.8 mm
- B: 29 mm
- C: 20 mm
- Note: UDL B.L. represents the breaking load when the load is applied across the full span of the shackle pin. P.L. B.L. refers to the breaking load when the load is applied at the center or one side of the shackle pin.
-
