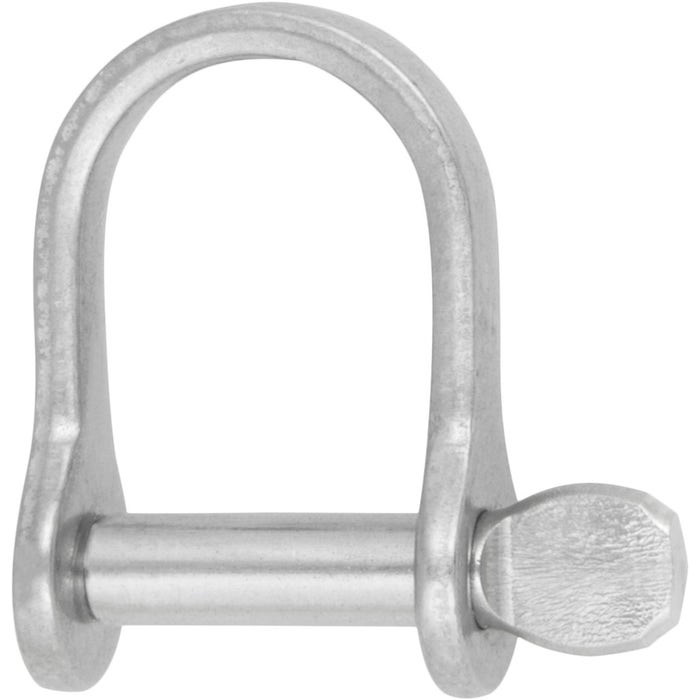

Stainless Steel D Shackle, 1/8" Pin
The Stainless Steel D Shackle is engineered for high strength and light weight, offering exceptional performance for a variety of applications with a coined pin head for added durability.
- Product number: RF1851
- Brand: Ronstan
- Specification Details:
- Weight (g): 2
- P.L. B.L. (kg): 280
- U.D.L. B.L. (kg): 375
- Shackle Pin Product No.: -
- Note: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
- Specification Details:
- A (mm): 3.2
- B (mm): 12
- C (mm): 9
- Materials: Grade 316 stainless steel bodies and pins
- Applications: Many shapes and sizes to suit any application
-
