€ 32,51
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Stainless Swivel Shackle with 1/4" Pins is made from Grade 316 stainless steel, offering corrosion resistance and durability. It has a point load breaking load of 700kg and a uniformly distributed load breaking load of 1100kg. This shackle is ideal for marine applications, with the product number RF173 from Ronstan.
- Description
- Ask a Question
-

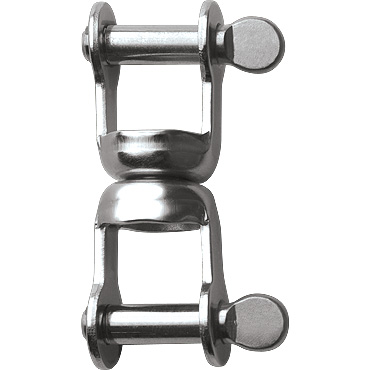

Stainless Swivel Shackle, 1/4" Pins
The Stainless Swivel Shackle is a durable and versatile rigging component designed to provide smooth rotation and articulation when used with blocks and rigging systems. It is made from high-quality Grade 316 stainless steel, ensuring corrosion resistance and long-lasting performance. This shackle is ideal for applications where rotation is needed but is not suitable for high-speed rotating systems.
- Weight: 40g
- Point Load Breaking Load (P.L. B.L.): 700kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 1100kg
- Shackle Pin Product No.: RF33
- Dimensions:
- A: 6.4mm
- B: 15mm
- C: 42mm
- D: 11.9mm
- Material: Grade 316 stainless steel bodies and pins
- Notes:
- UDL B.L. refers to the "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.
- P.L. B.L. refers to the "Point Load" breaking load of the shackle, where the load is applied only at the center or one side of the shackle pin.
- Product Number: RF173
- Brand: Ronstan
-
