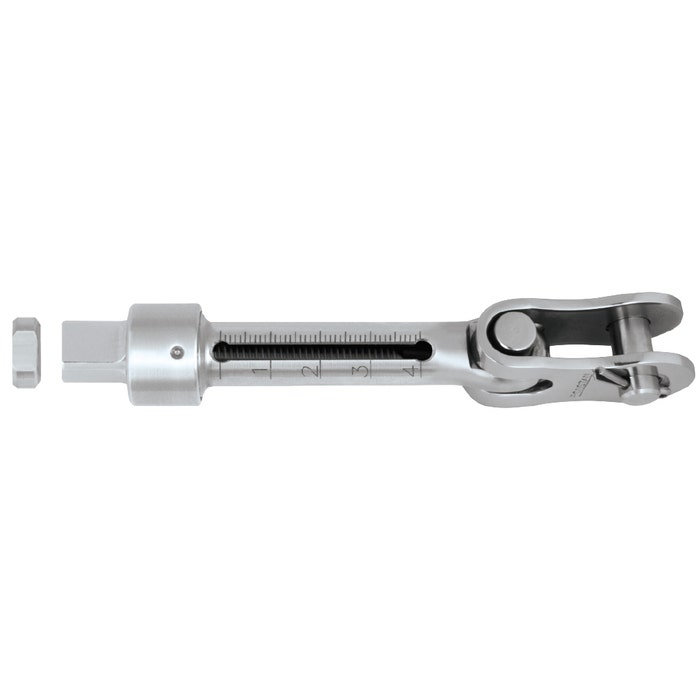

Ronstan RF1481-06 Calibrated Turnbuckle Body & Lock Nut, 3/8" Thread

SKU: MM 050728

€ 202,70

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Calibrated Turnbuckle Body & Lock Nut with 3/8" thread offers similar features but with a higher load capacity and larger dimensions. It also includes laser-etched calibrations for precise adjustments and a fine-thread system for easy use. The lock nut secures the desired length, and the dissimilar metals prevent thread issues. With toggle end articulation and multiple terminal options, this turnbuckle is ideal for demanding applications.

Description
Ask a Question

Calibrated Turnbuckle Body & Lock Nut, 3/8" Thread

The Calibrated Turnbuckle Body & Lock Nut with 3/8" thread offers similar features with a higher load capacity and larger dimensions.
- Laser-etched calibrations for precise, repeatable rig tension settings.
- Modern and sleek profile for an effective and stylish design.
- Improved adjustment process with fine thread and single-end adjustment.
- UNF (Unified National Fine) short pitch threads enable fine-tuning with less effort.
- Adjustable using a unique nut for ease of use.
- Lock nut secures the desired length firmly in place.
- Combining dissimilar metals prevents thread seizure.
- Toggle end ensures full lateral articulation and connection compatibility.
- Available with threaded eye, toggle, and swage terminal ends.
- Handle kit and swage grip available for 5/16" threaded models.
Product Number: RF1481-06 | Brand: Ronstan

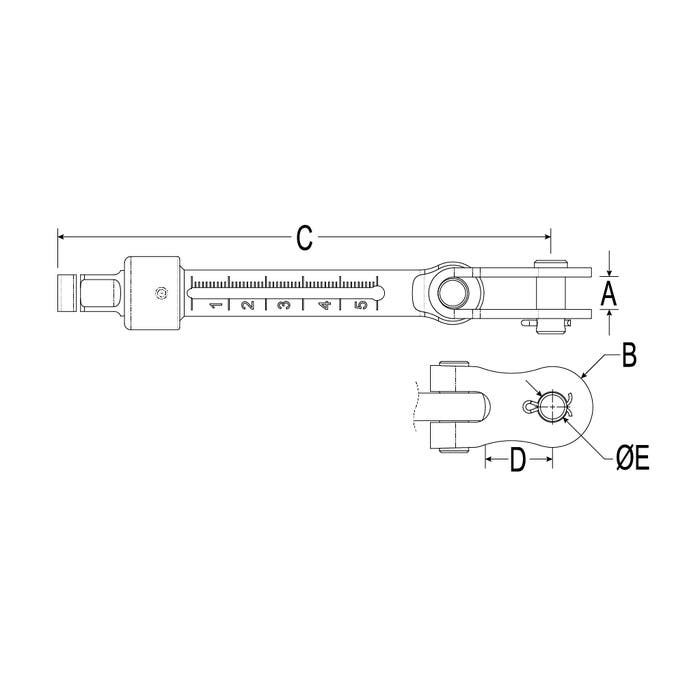

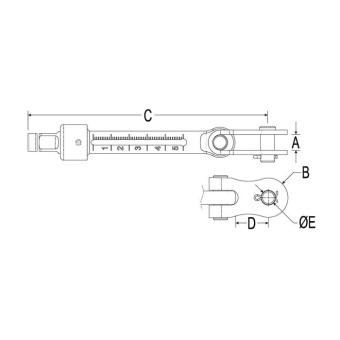

- Specifications:
- B.L. (kg): 3580
- Weight (g): 245
- Length (L) can be adjusted beyond sight hole, but should not exceed L MAX.
- A (mm): 10.5
- B (mm): 14.4
- C (mm): 162
- D (mm): 23.2
- E (mm): 9.4
