The Swivel 4.8mm pin diameter is a reliable and robust solution designed for heavy-duty applications. Made from Grade 316 stainless steel, it offers exceptional strength and durability, with a point load and uniformly distributed load breaking load of 650kg.
- Description
- Ask a Question
-

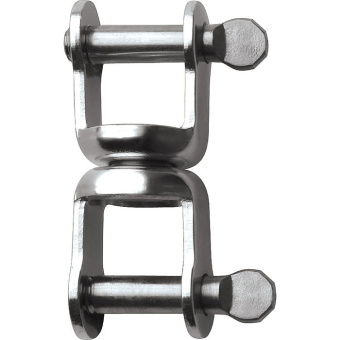

Swivel 4.8mm (3/16") Pin Diameter
Introducing the Swivel 4.8mm pin diameter, a robust and reliable solution designed for heavy-duty applications. Made from Grade 316 stainless steel, this product guarantees strength and durability.
- Product number: RF120
- Brand: Ronstan
- Pin Diameter: 4.8mm (3/16")
- Coined head pin
- Weight: 20g
- Point Load Breaking Load (P.L. B.L.): 650kg
- Uniformly Distributed Load Breaking Load (U.D.L. B.L.): 650kg

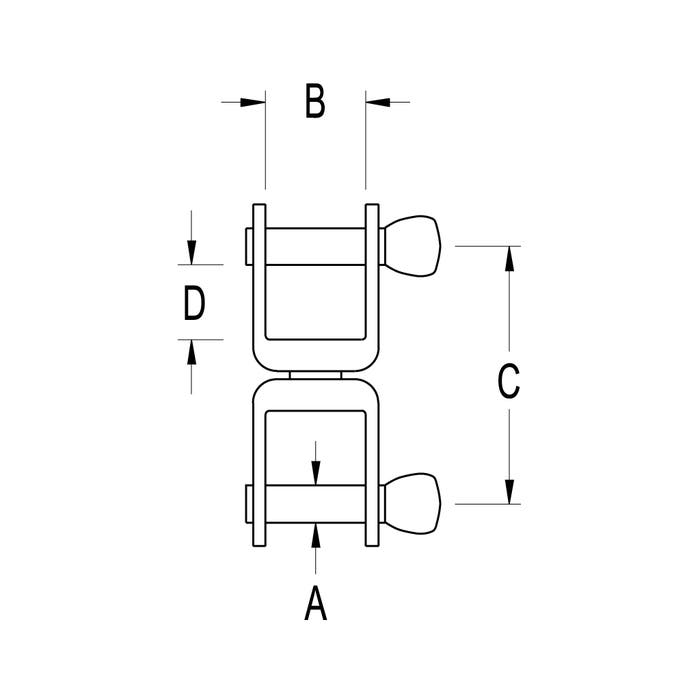

- Dimensions:
- A: 4.8mm
- B: 12mm
- C: 32mm
- D: 8.7mm
- Notes: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
-
