Ronstan RF109100 Series 100 Orbit Block, Single

SKU: MM 020140

€ 568,64

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Series 100 Orbit Block™, Single, offers strength, durability, and efficiency with a lockable swivel shackle head. It includes captive ball bearings for side thrust loads and a high-strength forged shackle, ensuring trouble-free performance and easy maintenance.

Description
Ask a Question

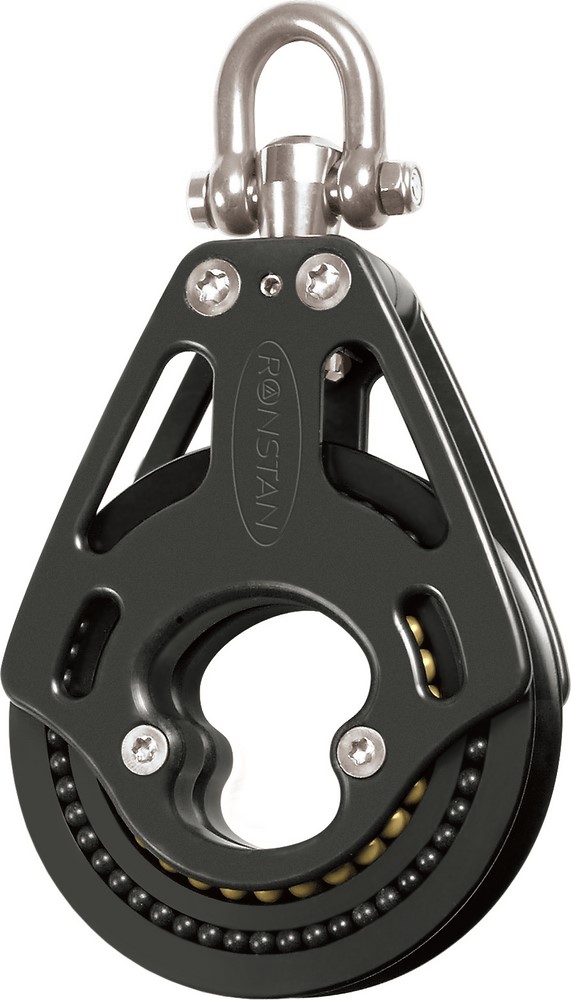

Series 100 Orbit Block™, Single

This single sheave block with a lockable swivel shackle head offers a combination of strength, durability, and efficiency for various applications. Below are the key features and specifications of this product:
- Features:
  - The highest strength-to-weight ratio.
  - Minimal friction loss, especially when working at high loads.
  - Captive ball bearings for side thrust loads.
  - Totally reliable and trouble-free performance.
  - Simplicity of design and construction to facilitate maintenance and servicing.
  - Elegant, functional styling and finish.
  - Lockable swivelling head post.
  - High strength forged shackle.
- Specifications:
  - Type of Block: Single
  - B.L. (kg): 6500
  - M.W.L. (kg): 3000
  - Max. Rope diameter (mm): 14
  - Weight (g): 492
  - Pin Ø (mm): 8
- Product number: RF109100
- Brand: Ronstan
