SKU:
ALP XT80.3EH12/CH
€ 16.151,43
1-2 weeks delivery time
-
+
The Antal XT80.3EHCH is a three-speed self-tailing bronze chromed electric winch at 12 volts, designed to offer strong electric power for demanding sailing conditions.
- Description
- Ask a Question
-
Antal XT80.3EHCH - Self-Tailing Bronze Chromed Electric Winch (3-Speed) 12v
This model offers enhanced power and line speed options with a robust 2000 watt motor and 24 volts supply. It supports heavier working loads and provides a range of recovery rates for manual operation, making it versatile for demanding sailing conditions.
- Article number: XT80.3EH12/CH
- Power settings: 10.0 / 28.0 / 75.0
- Manual recovery rates: 147 mm / 53 mm / 20 mm
- Line speeds: 24.0 m/min / 9.0 m/min / 3.5 m/min

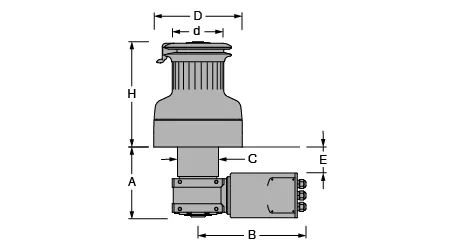

- Dimensions:
- Height (H): 326 mm
- Base diameter (Ø base, D): 339 mm
- Drum diameter (Ø drum, d): 210 mm
- A: 203 mm
- B: 334 mm
- C: 115 mm
- E: 74 mm
- Line diameter compatibility: min 10 mm, max 18 mm
- Weight: 77.5 kg
- Working load (motor): 4000 kg
- Fixing screws: 6 x Ø10 mm
-
