Antal XT80.3EHAL - Self-Tailing Aluminum Electric Winch (3-Speed)12v

SKU: ALP XT80.3EH12/AL

€ 16.151,43

1-2 weeks delivery time

- +

Add to cart

The Antal XT80.3EHAL is a powerful 24v self-tailing aluminum electric winch with three-speed operation and robust construction. It provides manual recovery distances from 147 mm to 20 mm, line speeds up to 24 m/min, and motor power of 2000 watts with a working load capacity of 4000 kg. The winch weighs 62.8 kg and is designed for heavy-duty marine tasks.

Description
Ask a Question

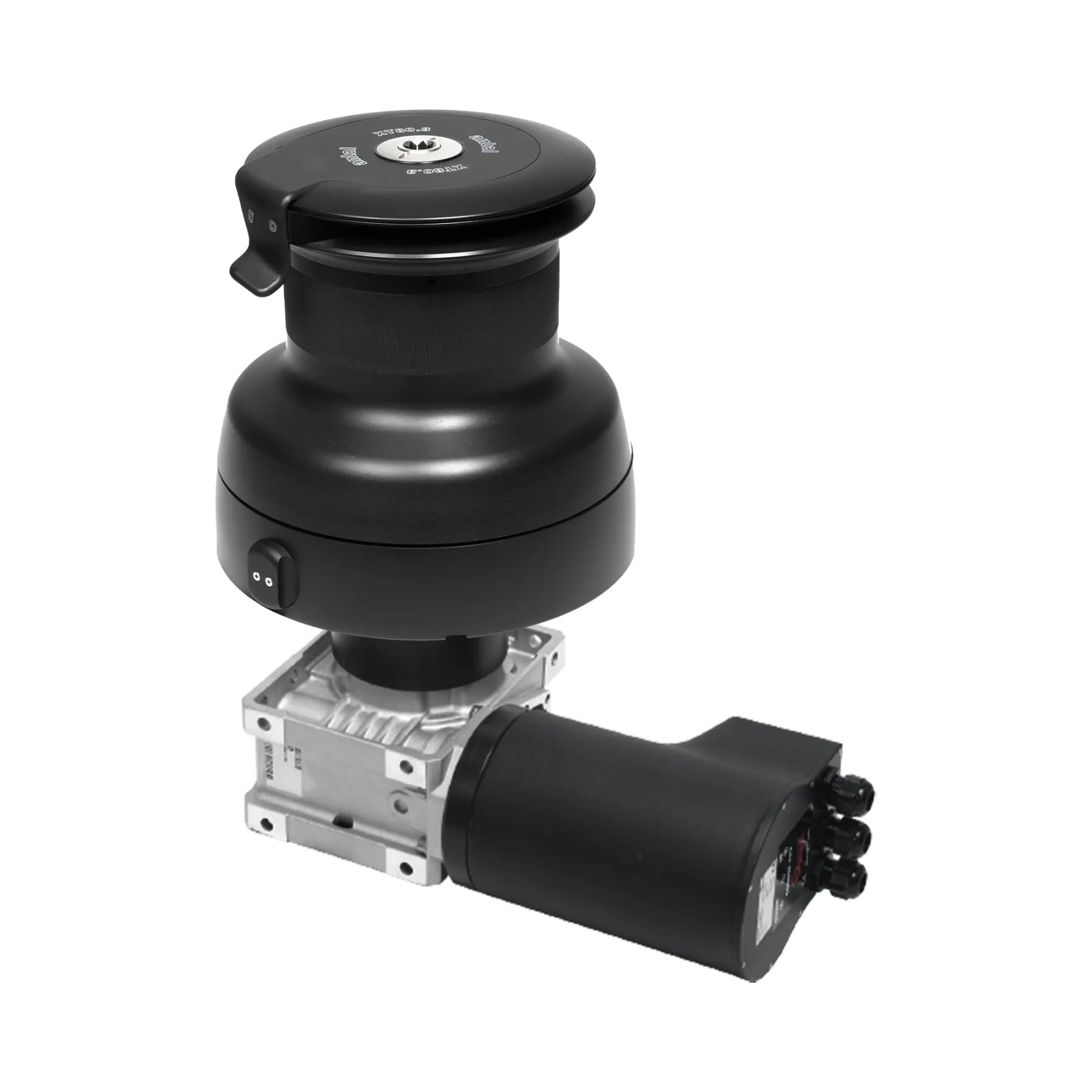

Antal XT80.3EHAL - Self-Tailing Aluminum Electric Winch (3-Speed) 12v

This powerful electric winch offers three-speed operation with impressive motor performance and robust construction. Designed for demanding tasks, it combines manual recovery options and precise line speeds to handle heavy loads efficiently.
- Power settings:
  - Power 1: 10.0
  - Power 2: 28.0
  - Power 3: 75.0
- Manual recovery distances:
  - Recovery 1: 147 mm
  - Recovery 2: 53 mm
  - Recovery 3: 20 mm
- Line speed:
  - Speed 1: 24.0 m/min
  - Speed 2: 9.0 m/min
  - Speed 3: 3.5 m/min

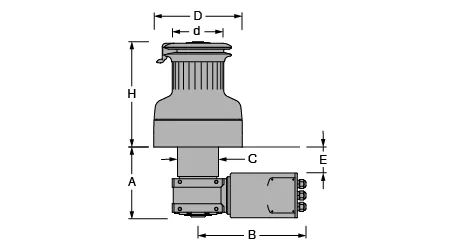

- Dimensions:
  - Height (H): 326 mm
  - Base diameter (Ø base D): 339 mm
  - Drum diameter (Ø drum d): 210 mm
  - A: 203 mm
  - B: 334 mm
  - C: 115 mm
  - E: 74 mm
- Weight: 62.8 kg
- Line diameter:
  - Minimum: 10 mm
  - Maximum: 18 mm
- Motor power: 2000 watt
- Working load motor capacity: 4000 kg
- Voltage: 24 V (available)
- Fixing screws: 6 x Ø10 mm
- Article number: XT80.3EH12/AL
