SKU:
ALP XT66EH12/AL
€ 7.383,20
1-2 weeks delivery time
-
+
The XT66EHAL is a heavy-duty 2-speed aluminum electric winch designed for larger loads and challenging sailing conditions. It features a 1500-watt, 12-volt motor and robust construction for high performance.
- Description
- Ask a Question
-

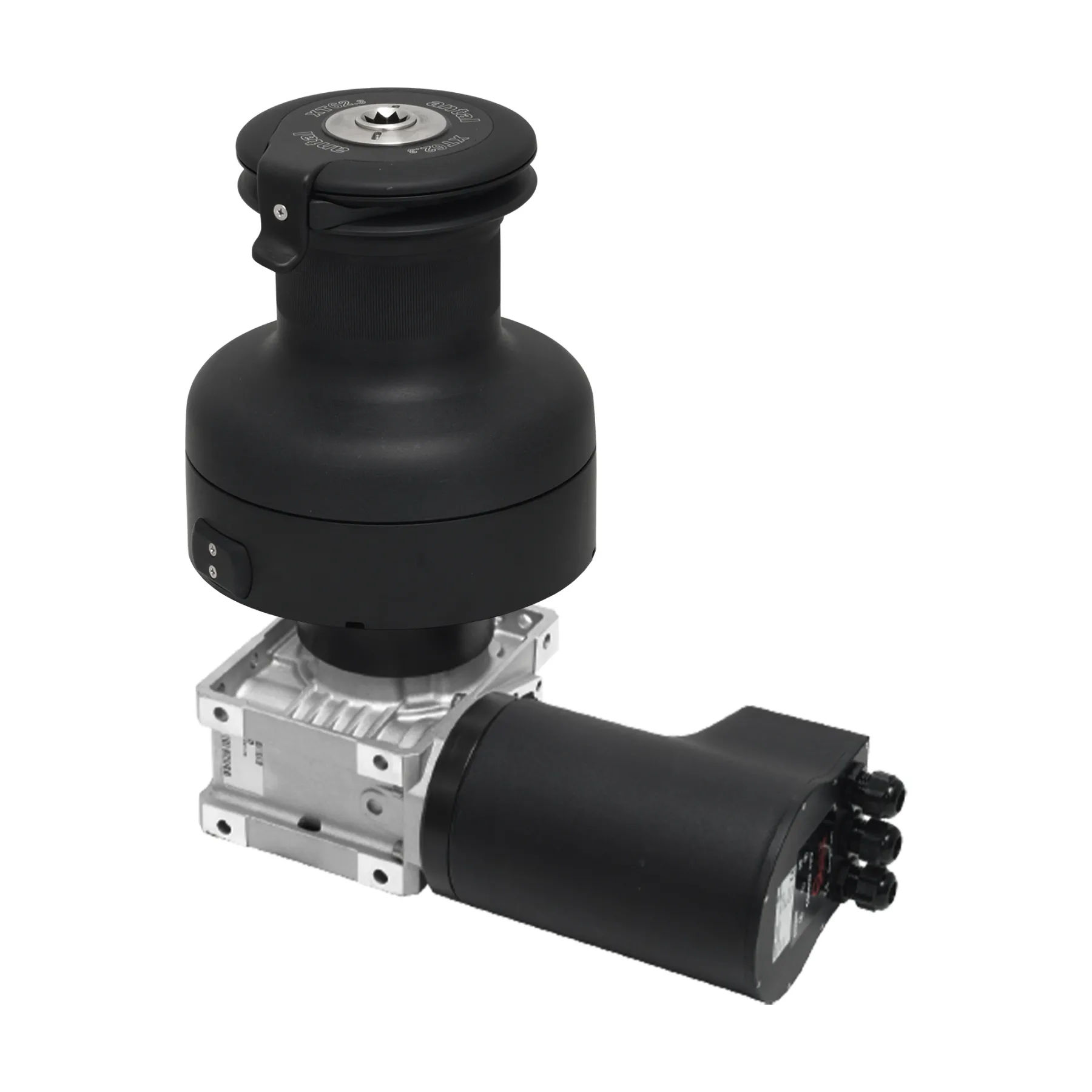

Antal XT66EHAL - Self-Tailing Aluminum Electric Winch (2-Speed) 12v
The XT66EHAL is a heavy-duty 2-speed aluminum electric winch with increased power and motor capacity, perfect for larger loads and demanding sailing conditions, powered by a 1500 watt 12-volt motor.
- Power 1: 18.0
- Power 2: 65.6
- Recovery (manual use) 1: 89 mm
- Recovery (manual use) 2: 24 mm
- Line speed 1: 13 m/min
- Line speed 2: 3.6 m/min
- Gear ratio 1: 5.2 : 1
- Gear ratio 2: 18.9 : 1

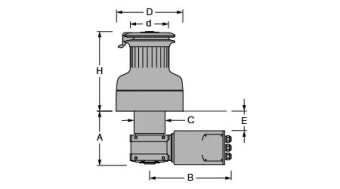

- Height (H): 256 mm
- Ø base (D): 248 mm
- Ø drum (d): 144 mm
- Weight: 41.7 kg
- A: 199 mm
- B: 311 mm
- C: 115 mm
- E: 74 mm
- Ø min line: 10 mm
- Ø max line: 18 mm
- Motor: 1500 watt
- Working load (motor): 2600 kg
- Volt 12: Available
- Volt 24: Available
- Fixing screws: 6 x Ø10 mm
- Article number: XT66EH12/AL
-
